Pure Electric Washing and Sweeping Vehicle

Product specification

ZBH5180TXSEQABEV PURE ELECTRIC washing and sweeping vehicle is a new generation of environmental sanitation mechanical product developed by our company. It is refitted with the pure electric chassis of EQ1180GEVJ1 class II truck of Dongfeng Motor Company, with zero emission. Its working principle is that the chassis and top are powered by batteries, the road surface is cleaned with high-pressure and low-flow high-pressure water flow, and the sewage and garbage on the road surface are sucked back to the on-board dustbin through the fan.
PURE ELECTRIC washing and sweeping vehicle has various functions, beautiful and generous appearance, and has superior performance of high efficiency, environmental protection and reliability.

Functions

With pavement cleaning, cleaning and cleaning, it can clean road edges, curb stone facades, front corner spray and rear spray, and high pressure spray guns can clean road signs, billboards and other functions. When low-pressure sprinkler system is selected, low-pressure front flushing or duckbill flushing can be carried out.

Application

It is applicable to high-definition cleaning operations of big city squares, road pavements and curbs, as well as ordinary cleaning operations such as cleaning and cleaning of city squares, road pavements and curbs. When the low-pressure sprinkler system is selected, the low-pressure cleaning operation can be carried out.

Main structure &performance features

• Chassis

Chassis. The chassis of eq118gevj1 class II truck of Dongfeng Motor Corporation is modified. The total power parameter of chassis battery (total power / voltage / capacity): 314.14kwh/579.6v/542ah). The chassis is the most advanced and reliable pure electric class II cargo chassis in China.
Chassis motor. Tz370xs-lkm1103 permanent magnet synchronous motor of Suzhou lvkong Transmission Technology Co., Ltd. is adopted. Motor parameters (rated power / speed / torque): 80kW / 1270rpm / 600N m。

• Upper motor and its transmission device

Install the motor. The top mounted motor adopts tz380xs-90zl of Ningde times. When the rated speed is 1500 R / min, the continuous power of the motor is 90kw. The fan and high-pressure water pump are driven by diaphragm coupling, bearing seat and belt pulley. There is a pneumatic clutch in front of the high-pressure water pump. The pneumatic clutch is separated, and the high-pressure water pump does not need to work.

• Fan

9-26 series 7.1 centrifugal fan is adopted, which has the characteristics of high efficiency, low noise, flat performance curve, wide high efficiency area and so on. It is one of the important accessories of Zhonglian medium-sized road sweeper for a long time. It has mature technology and reliable work.
4. Dustbin
304 single-layer stainless steel tile edge structure design is adopted, which integrates some clean water containers and garbage containers. The dustbin is tipped for unloading, the unloading angle is 480, the total volume of the dustbin is 6m3, and the effective volume is not less than 3.5 m3.

• Suction nozzle

The total width of the suction nozzle is 2440mm, and the suction width is 2400mm, which is almost flush with the vehicle width. The work efficiency and cleanliness are improved.

• Cleaning device.

The dual-purpose sweeping plate of cleaning and sweeping vehicle (Patent No. 200820052391.1) with national patent is adopted, which has the function of anti-collision and obstacle avoidance (patent structure, patent No. 00224174.9). During operation, when the disk sweeping and dust suction cover encounters an obstacle in front, it can shrink inward to avoid it, and automatically return to the normal working position after crossing the obstacle.
7. High pressure cleaning system
The high-pressure cleaning system consists of high pressure water pumps and high pressure water pipes. It mainly provides high pressure water for sweeping discs, suction nozzle sprinkler rods, garbage collector self cleaning device, rear spray device and manual cleaning device.
The high-pressure water pump adopts the international famous brand high-pressure plunger pump, with rated flow of 142l / min / 1450rpm and rated working pressure of 10MPa, high efficiency and good reliability.

• Electric control system

PURE ELECTRIC washing and sweeping vehicle adopts the control mode of "display + controller + can bus operation panel". When the operation starts and stops, the operation devices such as motor speed control, suction nozzle lifting, sweeping disc retraction and release, left and right spray bar retraction and release are all controlled by one key, which is easy to operate. Vehicle operation is realized by three operating devices, two in the cab and one in the operation panel on the right side of the rear of the vehicle.
display. It is located in the right front of the driver's seat and is mainly used for various washing and sweeping operations of vehicles.
Operation box. It is located next to the radio box in front of the driver's seat and is mainly used for starting and stopping the motor.
Operation panel. It is located behind the rear wheel on the right side of the vehicle and is mainly used for unloading, commissioning and maintenance of the dustbin.
The vehicle is equipped with color video rear view system. A camera is installed at the rear of the vehicle and a color display screen is installed in the cab. During operation, the cleaning effect can be checked and monitored in the cab. When reversing, you can navigate to prevent rear end collision.

There are many operation modes to choose from. The system has 9 operation modes: full sweep, left sweep, right sweep, full sweep, left sweep, right sweep, full sweep, left sweep and right sweep. The user can select the appropriate operation mode according to the operation needs. After the operation mode is selected, start the operation with one key, and all mechanisms that need to participate in the operation will automatically extend and operate according to the specified sequence. When the operation needs to be stopped, the one button shutdown will automatically stop the operation and return to the original state according to the specified sequence.

Install the main motor speed control. The normal working speed of the main motor is automatically controlled by the electrical system, with three gears of "standard", "medium force sweep" and "strong sweep". From the start of the main motor to the start of operation, run at a low speed, with a speed of about 50R / min. After the operation is started, the speed of the main motor will increase automatically. The stable working speed of "standard" gear is 1350r / min, that of "medium force sweep" gear is 1500r / min, and that of "strong sweep" gear is 1750r / min.
Voice alarm system. The voice alarm system equipped with the vehicle can send out a variety of voice alarms and prompt messages during operation and unloading, including voice prompt messages such as "water tank outlet valve is closed, can not be cleaned", "sewage tank overturns, please pay attention to safety", as well as multiple music prompt messages and roaring alarm messages, which are convenient and practical.
Vehicle controller. The vehicle controller HCU is independently developed and designed by Dongfeng commercial vehicle company. The core microprocessor chip adopts 32-bit Freescale microprocessor. The chassis control strategy integrates Dongfeng's 50 years of truck manufacturing experience and is supported by the driving experience data of 100000 customers to improve the daily driving comfort of truck drivers.

Comprehensive performance of battery. The power battery of this model is l271c01 lithium iron phosphate power battery box produced by Ningde Times New Energy Technology Co., Ltd., equipped with ceb-b60sv01 / ceb-b60h battery tube system, which is at the domestic advanced level. The battery system forms 10 sets of l271c01 battery boxes into a power battery assembly through 2 parallel and 5 series connection. See the attached table for the main parameters of the battery system.

L271c01 power battery box is packed by 36 6lh3l8 square aluminum shell single cells in series. The working temperature range is - 30 ℃ ~ 60 ℃ and the protection grade is IP68. It has multiple protections such as over temperature, overcharge, over discharge and short circuit, with stable performance, safety and reliability.
Drive motor. The chassis drive system adopts the permanent magnet synchronous motor (tz370xs-lkm1103) developed by Suzhou lvkong Transmission Technology Co., Ltd., with peak power of 160 kW, peak torque of 1100 N.m and protection grade of IP67. When combined with AMT gearbox, it can not only meet the comfort and economy of electric vehicle driving, but also achieve a climbing slope of more than 25%.
The top mounted motor adopts the permanent magnet synchronous motor tz380xs-90zl developed by Ningde times Motor Technology Co., Ltd. when the rated speed is 1500 R / min, the continuous power of the motor can reach 90kw and the protection grade is IP68, providing strong power output for the operating mechanism.
Six in one controller. The chassis adopts the six in one controller ktz54x59s-gvd55050 developed by Shenzhen yingweiteng electric vehicle drive technology Co., Ltd. for Dongfeng Motor, which integrates six functions: power steering motor controller, air compressor motor control, DC / DC, high-voltage power transmission and distribution, main drive motor controller and upper high-voltage precharge.

 The overall power density of the controller has been greatly improved, and the weight of the new product is about 38kg. The integrated single end waterproof connector is adopted to realize absolute IP68, so as to avoid the risk of reducing the protection grade caused by poor crimping harness. EMC (electromagnetic compatibility) solutions are integrated inside the chassis without additional external rectification, and can meet the requirements of conduction and radiation class 3 directly with shielded cables.


Safety protection:

• l high voltage interlock: all connectors adopt high voltage interlock function;

• l anti touch finger function: all connectors adopt anti touch finger function;

• l single end IP68 protection: high and low voltage connectors;

• l anti vibration and falling off: the elastomer of commercial vehicle meets the vibration requirements of GB / T 28046.3-2011;

• l active and passive discharge functions: meet the requirements of active discharge within 3 seconds and passive discharge within 3 minutes;

• l cover opening interlock: after the cover is opened, the whole machine will automatically disconnect all high voltage to protect personal safety.

Ø protection mechanism:

• l 1. The fault shall be handled by level, and corresponding protection measures shall be taken according to the fault priority.

• l 2. In addition to conventional protection functions such as overvoltage, overcurrent, overtemperature, jitter, etc., it also has:

• ü contactor adhesion detection function: detect whether the contactor is adhered before power on, so as to effectively protect the safety of the whole vehicle.

• ü active and passive discharge function: actively discharge the internal power of the main drive within 3 seconds to reduce the internal voltage of the drive to 36V.

• ü cover opening interlock and high-voltage interlock function: after the cover of the whole machine is opened or the high-voltage connector is not fully connected, the whole machine is not allowed to apply high-voltage.

• ü reverse protection function: perfect protection scheme, which can protect the reverse caused by wrong wiring of motor or rotary transformer.

• l 3. Wake up function: independent driving wake-up, fast charge wake-up and slow charge wake-up functions.

• l 4. Multi channel PDU configuration: in addition to conventional PDU configuration, range extender, top mounted and slow charging high-voltage output interfaces are reserved to meet the application of pure electric bus / light truck, incremental bus / light truck, sanitation vehicle and other models.

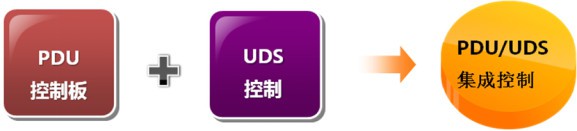

Integrated control board design

(1) The integrated control board includes the control of high-voltage distribution contactor and contactor state detection.
(2) The machine overrides the UDS control function.
(3) Realize internal can control function, and support can control and hard wire control with external.
(4) Independent driving wake-up, fast charge wake-up and slow charge wake-up functions.
Integrated high voltage distribution

(1) High voltage distribution contactors and fuses are integrated to form a compact and complete independent module. Compared with discrete devices, cables are used to build smaller volume, more convenient assembly and more stable performance;
(2) The devices are interconnected through PCB copper sheet, which has high connection reliability and good production consistency, greatly reduces the interconnection harness, makes the prototype cleaner and meets the requirements of automatic production;
The contactor status detection function is reserved on the board to improve the reliability of the system.

Main technical parameters

• Main advantages of the product

• Superior performance

The garbage box structure is advanced. The garbage box adopts 304 single-layer stainless steel tile edge structure design, which integrates some clean water boxes and garbage boxes. It has novel shape, beautiful appearance, corrosion resistance, large volume, no framework, convenient garbage dumping and easy cleaning. The dustbin is tipped and unloaded, and the unloading angle is up to 48 °. The total volume of the dustbin is 6m ³， The effective volume shall not be less than 3.5m ³， With internal self-cleaning device.

Sweep the disk. The dual-purpose sweeping plate of cleaning and sweeping vehicle (Patent No. 200820052391.1) with national patent is adopted, which has the function of anti-collision and obstacle avoidance (patent structure, patent No. 00224174.9). During operation, when the disk sweeping and dust suction cover encounters an obstacle in front, it can shrink inward to avoid it, and automatically return to the normal working position after crossing the obstacle.

Fan. 9-26 series 7.1 centrifugal fan has the characteristics of high efficiency, low noise, flat performance curve, wide high efficiency area, etc. It is one of the important accessories of Zhonglian medium-sized road sweeper for a long time. It has mature technology and reliable work.

Super wide suction nozzle. The total width of the suction nozzle is 2440mm, and the suction width is 2400mm, which is almost flush with the vehicle width. The work efficiency and cleanliness are improved. During the operation of the high-pressure spray bar in the suction nozzle, the height of the spray bar from the ground is fixed and does not change with the load of the whole vehicle, which can achieve stable and best cleaning effect.
Combined high pressure cleaning spray bar. The high-pressure cleaning spray bar is composed of left and right spray bars and spray bars in the suction nozzle. It is attached to the suction nozzle or in the suction nozzle. During operation, the height of the spray bar from the ground is fixed and does not change with the load of the whole vehicle, which can achieve and stabilize the best cleaning effect. The left and right spray rods can swing out and retract. This action is driven by the cylinder and automatically controlled by the electric control system. When the left and right spray bars are swung out at the same time, the cleaning width shall not be less than 3.5m, and when swung out on one side, the cleaning width shall not be less than 2.9m. In order to facilitate the adjustment, maintenance and replacement of the nozzle, the spray rod in the suction nozzle is designed into a quick pull-out structure, and has applied for a national patent.

Automatic winding and flushing reel. A mechanical automatic winding flushing reel is installed at the rear of the right side of the washing and sweeping vehicle, equipped with 20m high-pressure hose, which can be used to clean the washing and sweeping vehicle itself and other places that need to be cleaned.

Hand held stainless steel spray gun. Equipped with quick connector, it can be easily connected or disconnected from the flushing reel. Using hand-held spray gun, the cleaning efficiency is high, the effect is good, and the operation is more convenient and safe.

The electric control system is advanced. The control mode of "display + controller + can bus operation panel" is adopted. When the operation starts and stops, the motor speed control, suction nozzle lifting, sweeping disc retraction and release, left and right spray bar retraction and release and other operation devices are all controlled by one key, which is convenient to operate and greatly reduces the possibility of misoperation.
lighting. In order to facilitate operation at night or in an environment with insufficient brightness, the left and right sweeping plates are equipped with lights to monitor the working condition of the sweeping plate.
Various automatic protection devices. The washing and sweeping vehicle is equipped with automatic protection devices such as water shortage in the clean water tank, full water in the dustbin, forward tipping and unloading when the rear door of the dustbin is opened, engagement and separation of the pneumatic toothed clutch during the operation of the auxiliary generator, and recovery of the overturned dustbin without lowering the protective brace, so as to protect the washing and sweeping vehicle from damage under specific working conditions such as water shortage and full water or misoperation.

• Superior in quality

High accessory configuration. The high-pressure water pump, overflow valve and unloading valve are international well-known brands, and the main motor and electrical control components are international or domestic well-known brands with excellent quality and high reliability.

• Safe and reliable

Equipped with voice alarm system. It can send out various voice alarms and prompt messages during operation and unloading.

Provide dustbin safety brace. It can provide reliable safety protection during maintenance.

• Job function

This vehicle has many functions, such as road washing, road edge and curb stone facade washing, spray and dustfall. It can be used separately as washing sweeper, road cleaning truck and spray dustless car.
1、Cleaning operation. When used for washing and sweeping vehicles, the clean water tank has a large volume of 8.5m3 and can operate continuously for 7h. The cleaning rate of the road surface can reach more than 95% after one cleaning operation.
2、Kerb and kerb facade washing. When cleaning the curb, the elevation of the curb and the road surface close to the curb can be washed at the same time, the top surface of the curb can be washed, and the sewage and garbage can be collected, which well solves the problem of cleaning the most dirty curb.

3、Rear spray device. In case of dry weather and dusty road surface, spraying equipment can be used for spraying, dilute wet air and spray dust.

4、 Manual cleaning device. It is composed of a hand-held spray gun and a flushing reel (20m), which is connected or disconnected through a quick connector. The hand-held spray gun can be used to clean the dirt, psoriasis and billboards on both sides of the road. The cleaning efficiency is high, the effect is good, and the operation is more convenient and safe.

• Optional devices
