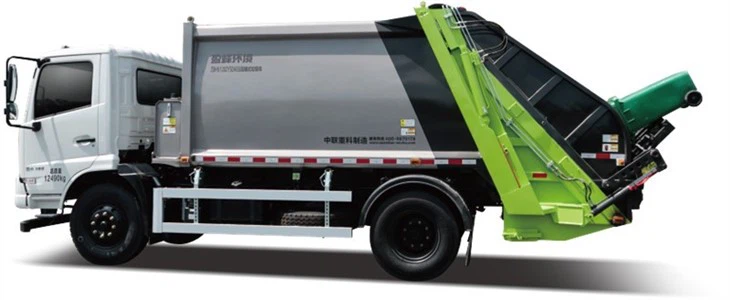

Garbage Compactor Truck
By combining the advantages of garbage compactor truck products both home and abroad, Zoomlion Environment designed and developed all-new generation garbage compactor. This vehicle features beautiful shape, excellent performances, and humanized maneuver and adopts two-direction compacting technology to complete the collection and transport of township household waste. It’s mainly suitable for the collection and transport of household waste in containers, bags, and bulks for township residential areas, communities, large factories and mines, and institutions and universalities and incorporates multiple types of container (bucket) tilting mechanisms to adapt to diversified waste collection modes for different users.
Product Introduction
PERFORMANCE FEATURE
● POWERFUL FUNCTIONS
-Diversified optional container (bucket) tilting mechanisms: Steel waste container (300L), plastic waste container (240/660/1,100L), truck-mounted small waste bucket (800L), sealed lid type waste bucket (1,400L), and large waste bucket (3,350L).
-The tank body adopts the large capacity design with four curved surfaces.
-The pioneering S-shaped scraper pre-compacts the loose waste to release more loading space.
-The high-pressure fine filtration system improves the hydraulic oil cleanliness to guarantee high reliability.
● HIGH ENVIRONMENTAL-FRIENDLINESS AND RELIABILITY
-The double-layer rubber seal and the sewage guiding and collecting device eliminate the dripping and leakage of sewage.
-The key components are made of weather-resistant and wear-resistant steel plates to adapt to severe working conditions and guarantee long life.
● HIGH EFFICIENCY AND INTELLIGENCE
-The multimedia real-time monitors the compacting, loading, dumping, and rearview camera information to double the safety. -The integrally electro-hydraulic cylinder technology is introduced to realize more accurate motions.
-“CAN bus + special controller mode”guarantees high automation level.
TECHNICAL PARAMETERS
| ITEM | UNIT | ZBH5070ZYSCAY6 | ZBH5070ZYSQLE6 | ZBH5070ZYSHFY6 | ZBH5070ZYSEQY6 | ZBH5080ZYSJXE6 |
|
Effective capacity of waste tank |
m³ |
6.2 |
6.2 |
6.2 |
6.2 |
6.2 |
|
Pre-compactor capacity |
m³ |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Compacting cycle time |
s |
≤19 |
≤17 |
≤19 |
≤19 |
≤17/13 |
|
Loading cycle time |
s |
≤10 |
≤9 |
≤10 (Container tilting type) |
≤10 |
≤9 |
|
Dumping cycle time |
s |
≤45 |
≤45 |
≤45 |
≤45 |
≤45 |
| ITEM | UNIT | ZBH5120ZYSDFE6 | ZBH5120ZYSDHE6 | ZBH5180ZYSDFE6 | ZBH5180ZYSDHE6 | ZBH5180ZYSEQY6 |
|
Effective capacity of waste tank |
m³ |
10 |
10 |
13 |
13 |
13 |
|
Pre-compactor capacity |
m³ |
1.65 |
1.65 |
2 |
2 |
2 |
|
Compacting cycle time |
s |
≤17 |
≤17 |
≤20 |
≤20 |
≤20 |
|
Loading cycle time |
s |
≤10 |
≤10 |
≤10 |
≤10 (Container tilting type) |
≤10 |
|
Dumping cycle time |
s |
≤45 |
≤45 |
≤45 |
≤45 |
≤45 |
| TEM | UNIT | ZBH5180ZYSLZE6 | ZBH5180ZYSCAE6 | ZBH5250ZYSDFE6 | ZBH5250ZYSCAE6 | ZBH5250ZYSLZE6 |
|
Effective capacity of waste tank |
m³ |
13 |
13 |
20.5 |
20.5 |
20.5 |
|
Pre-compactor capacity |
m³ |
2 |
2 |
2.4 |
2.4 |
2.4 |
|
Compacting cycle time |
s |
≤20 |
≤20 |
≤24 |
≤24 |
≤24 |
|
Loading cycle time |
s |
≤10 |
≤10 |
≤10 |
≤10 |
≤10 |
|
Dumping cycle time |
s |
≤45 |
≤45 |
≤55 |
≤55 |
≤55 |
Optional no loading device
Optional bucket dumping device
Optional bucket lifting device
Optional new container tilting device
Optionalcontainertilting andbucketliftingdevice
Optional lid tilting and container tilting device

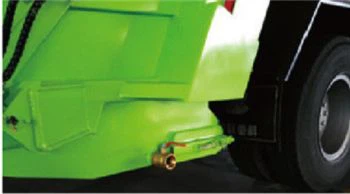

The sewage tank beneath the pre-compactor eliminates the secondary pollution.
The fully-enclosed pre-compactor lid features dust/odor-proof and high elegance and beauty.

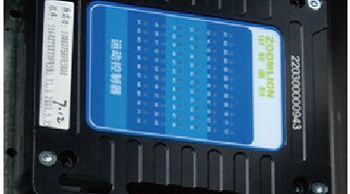

The motion controller features malfunction self-diagnosis and good automation level.
The cab control box allows the operator to complete the dumping without getting off the vehicle.
The tail control box eases the operations.
