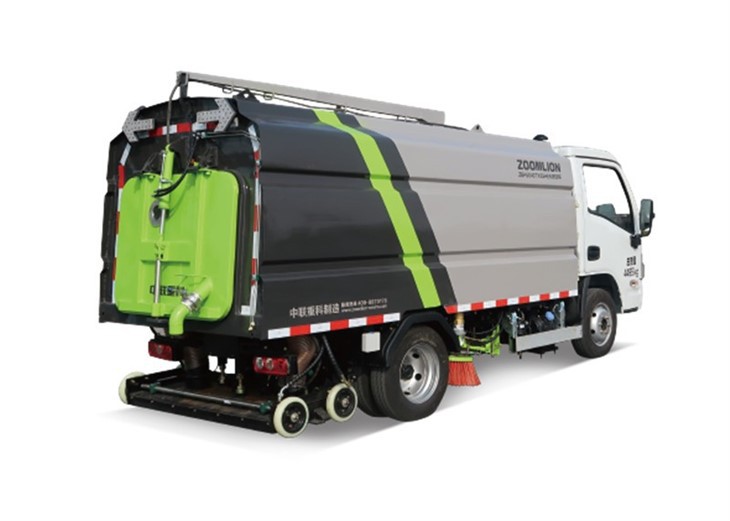

Cleaning Sweeper Truck
It’s suitable for the high-cleanliness sanitation operations and the common sanitation operations(Including sweeping, cleaning, and sweeping/cleaning) for urban squares, road surfaces, and curbs. The industry’s first all-new small fuel cleaning sweeper truck incorporates the high-cleanliness cleaning/sweeping function and is especially suitable for the non-motorized lanes, auxiliary lanes, and internal roads of some large public places (Such as parks and factories).
Product Introduction
PERFORMANCE FEATURE
● MULTI-PURPOSE VEHICLE AND HIGH OPERATING EFFICIENCY
-It incorporates multiple functions, including road cleaning/sweeping, sweeping, high/low pressure cleaning, curb scrubbing, and dust-suppression mist spray, for multiple purposes.
-The pioneering arrangement mode of“Two middle-mounted sweeping discs + middle-mounted wide suction nozzle + U-shaped spray boom”is adopted to realize high cleanliness rate and fast operating speed.
● STRINGENT MATERIAL SELECTION AND RELIABLE QUALITY
-The industry's pioneering corrugated tank body features light and handy structure and high resistance against deformation and cracking.
-The auxiliary engine, high pressure water pump, and electric and hydraulic parts adopt renowned brand products to guarantee high efficiency and good reliability.
-The waste tank and clean water tank are made of the stainless steel manufactured by renowned steel works, including Ansteel and Wuhan Steel, to stringently guarantee the quality.
● HIGH SAFETY AND INTELLIGENCE AND EASY OPERATIONS
-The advanced“Intelligent screen + CAN bus”electronic control system allows the one-touch operations of main functions.
-The intelligent voice alarm system is installed to monitor and alarm the abnormalities and violations, including water shortage of clean water tank, sewage fullness of waste tank, leakage of hydraulic oil, and abnormal return of waste tank, in order to guarantee the normal operations of machine and prevent the occurrence of accidents.
-The rearview monitoring system assists the driver’s safe operations.
TECHNICAL PARAMETERS
| ITEM | UNIT | ZBH5040TXSSHE6 | ZBH5070TXSQLE6 | ZBH5080TXSJXE6 |
|
Wheelbase |
mm |
2650 |
3815 |
3815 |
|
Capacity of stainless steel water tank |
m3 |
2 |
4.5 |
4.5 |
|
Stainless steel waste tank capacity |
m³ |
2 |
2.8 |
3.0 |
|
Cleaning/sweeping width |
m |
2.5 |
3.1 |
3.2 |
|
Cleanliness rate |
- |
≥95 |
≥95 |
≥95 |
| ITEM | UNIT | ZBH5110TXSQLE6 | ZBH5180TXSDFE6 | ZBH5180TXSCAE6 |
|
Wheelbase |
mm |
4475 |
5300 |
5300 |
|
Capacity of stainless steel water tank |
m3 |
6.2 |
9 |
9 |
|
Stainless steel waste tank capacity |
m³ |
3.4 |
7 |
7 |
|
Cleaning/sweeping width |
m |
3.2 |
3.5 |
3.5 |
|
Cleanliness rate |
- |
≥95 |
≥96 |
≥96 |
| TEM | UNIT | ZBH5180TXSLZE6 | ZBH5180TXSDFE6D | ZBH5250TXSDFE6 |
|
Wheelbase |
mm |
5300 |
5000 |
5350+1350 |
|
Capacity of stainless steel water tank |
m3 |
9 |
10 |
12.5 |
|
Stainless steel waste tank capacity |
m³ |
7 |
7 |
9 |
|
Cleaning/sweeping width |
m |
3.5 |
3.5 |
3.5 |
|
Cleanliness rate |
- |
≥96 |
≥96 |
≥96 |

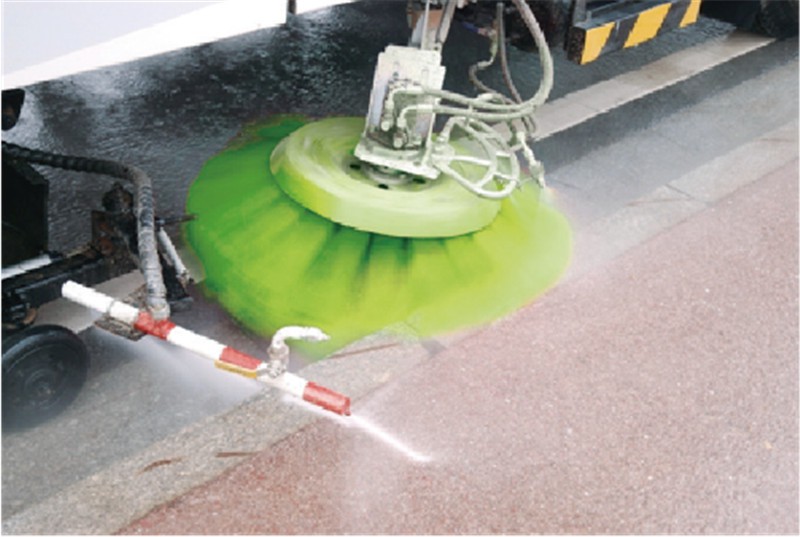

The patented adaptive sweeping discs and sweeping brushes are capable of automatic obstacle avoidance
The high pressure spray gun system is installed to ease the cleaning and maintenances of vehicle

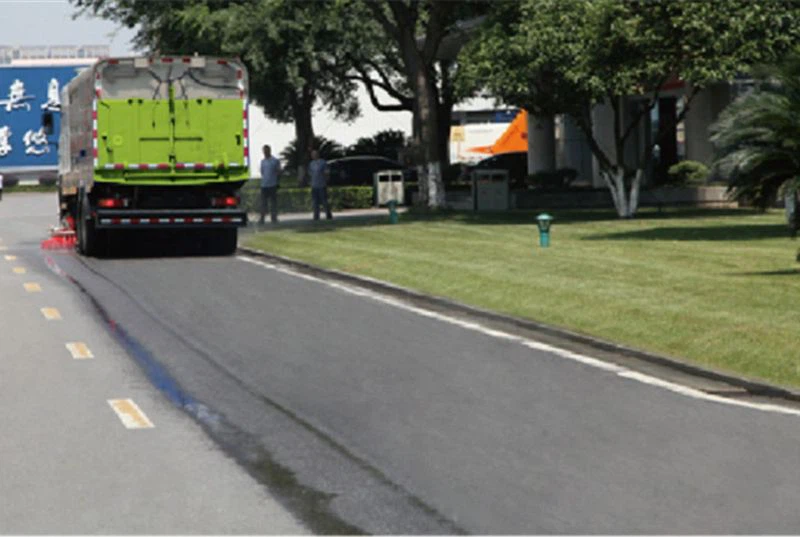

The road surface cleanliness rate can reach 96% during cleaning/sweep- ing operation
The spray boom installed on tail of vehicle can spray mist for dust-sup- pression
