High Pressure Water Tanker

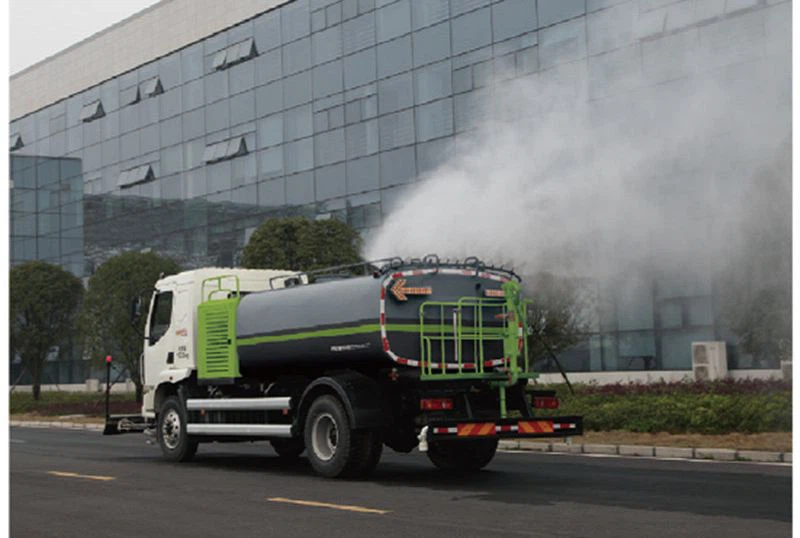

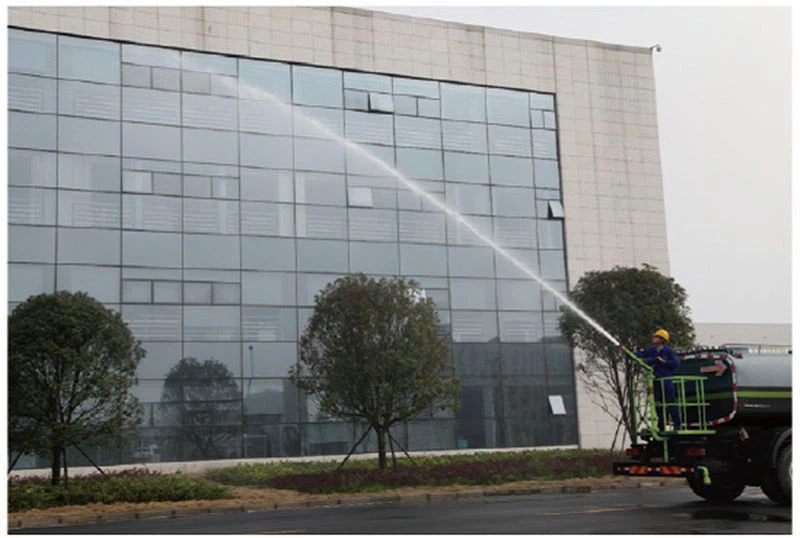

It’s applicable for the cleaning of urban roads, highways, squares, and ports and harbors as well as the greening irrigations for green belts. The optional self-priming device can be used for the sites without pressurized running water to realize the autonomous water refilling and expand the operation scope of the vehicle. The optional guardrail cleaning device can be used for the cleaning of highway and urban railings. The optional aerial platform can be used for the cleaning and maintenance of aerial facilities, including guideposts and advertising boards. The optional rear mist spraying system can be used for dust-suppression and temperature reduction operations. It’s not suitable for the operations under the environments with easily freezing temperature.

Send Inquiry

Product Introduction

PERFORMANCE FEATURE

● HIGH EFFICIENCY
-The high pressure cleaning tanker is equipped with multiple safety protection devices and warning system to protect the water pump against overspeed damage.
-The cruise control system on the cleaning tanker improves operating quality, eases the operations, and saves the fuel.
-With the application of finite element design for the structure, the water tank reduces own weight by 10% and increases the effective capacity by 10% to realize longer operating time.

● HIGH ENVIRONMENTAL-FRIENDLINESS
-The design optimized low pressure water circuit system of the cleaning tanker realizes reduced water and energy consumptions on the precondition of meeting the operating needs.
-The best matching combination of the auxiliary engine, water pump, and drive system of the high pressure cleaning tanker realizes high-efficiency and fuel-saving and save the fuel by >10%.

● HIGH RELIABILITY
-The special flow production line, the tank forming technology, and the robot automatic welding guarantee the product quality to realize low malfunction rate and high efficiency of the vehicle.
-The cleaning tanker features complete functional equipment, multi-purpose, extensive application scope, and high operating efficiency.

TECHNICAL PARAMETERS

ITEM	UNIT	ZBH5082GQXJXE6	ZBH5082GQXJXE6D	ZBH5182GQXDFE6	ZBH5182GQXEQE6
Wheelbase	mm	3360	3360	4500	4500
Cleaning width of water spray holder	m	≥2.6	≥2.6	3.5	3.5
Flushing width	m	≥14	≥14	24	24
Sprinkling width	m	≥12	≥12	14	14
Water gun range	m	≥28	≥28	38	38
Rated pressure of high pressure water pump	MPa	10	10	14	14
Low pressure water pump lift	m	45	45	110	110
Capacity of tank	m³	3.28	3.87	9.3	9.7

TEM	UNIT	ZBH5182GQXLZE6	ZBH5182GQXCAE6	ZBH5252GQXDFE6	ZBH5252GQXCAE6
Wheelbase	mm	4500	4500	4350+1350	4350+1350
Cleaning width of water spray holder	m	3.5	3.5	3.5	3.5
Flushing width	m	24	24	24	24
Sprinkling width	m	14	14	14	14
Water gun range	m	38	38	38	38
Rated pressure of high pressure water pump	MPa	14	14	14	14
Low pressure water pump lift	m	110	110	110	110
Capacity of tank	m³	9.45	9.3	13.5	13.5
