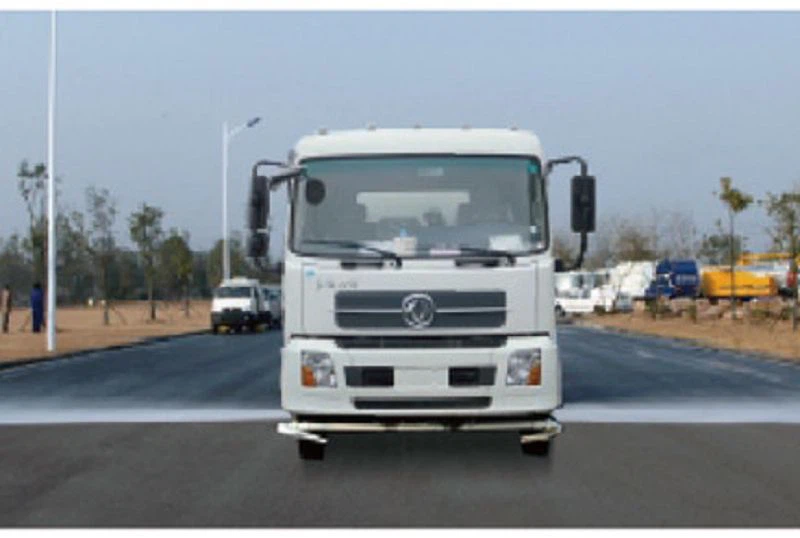

Low Pressure Cleaning Tanker
The low pressure cleaning tanker researched and developed by Infore Zoomlion is suitable for the cleaning and dust-suppression sprinkling of urban roads and squares and the irrigating of green belts. The low-pres-sure water circuit part includes the front duckbilled nozzle, conical opposed flushing nozzle, rear sprinkler nozzle, and long-range water monitor. The front duckbilled flushing and conical opposed flushing devices can be used for the flushing of highways and squares, the rear sprinkler can be used for sprinkling, dust-suppres-sion, and temperature reduction of roads, and the water monitor is applicable for the long-range flushing and auxiliary firefighting.
Product Introduction
PERFORMANCE FEATURE
● HIGH ENVIRONMENTAL-FRIENDLINESS
-The design optimized low pressure water circuit system of the cleaning tanker realizes reduced water and energy consumptions on the precondition of meeting the operating needs.
● HIGH EFFICIENCY
-With the application of finite element design for the structure, the water tank reduces own weight by 10% and increases the effective capacity by 10% to realize longer operating time.
-The special flow production line, the tank forming technology, and the robot automatic welding guarantee the product quality to realize low malfunction rate and high efficiency of the vehicle.
-The cleaning tanker features complete functional equipment, multi-purpose, extensive application scope, and high operating efficiency.
● HIGH INTELLIGENCE
-The cruise control system on the cleaning tanker improves operating quality, eases the operations, and saves the fuel.
TECHNICAL PARAMETERS
| TEM | UNIT | ZBH5183GQXDFE6 | ZBH5183GQXLZE6 | ZBH5183GQXCAE6 |
|
Wheelbase |
mm |
4500 |
4500 |
4500 |
|
Maximum capacity of water tank |
m³ |
12.47 |
12.47 |
12.47 |
|
Front flushing width of duckbilled nozzle |
m |
≥8 |
≥8 |
≥8 |
|
Sprinkling width |
m |
≥14 |
≥14 |
≥14 |
|
Flushing width of rear conical nozzle |
m |
≥24 |
≥24 |
≥24 |
|
Water gun range |
m |
≥38 |
≥38 |
≥38 |
|
Water pump lift |
m |
110 |
110 |
110 |
|
Self-priming height |
m |
6.5 |
6.5 |
6.5 |
| ITEM | UNIT | ZBH5255GQXDFE6 | ZBH5253GQXDFE6 | ZBH5253GQXDHE6 | ZBH5253GQXCAE6 |
|
Wheelbase |
mm |
4350+1350 |
4350+1350 |
1995+4000 |
4350+1350 |
|
Maximum capacity of water tank |
m³ |
19.7 |
16.2 |
17.5 |
16.2 |
|
Front flushing width of duckbilled nozzle |
m |
≥8 |
≥8 |
≥8 |
≥8 |
|
Sprinkling width |
m |
≥14 |
≥24 |
≥14 |
≥14 |
|
Flushing width of rear conical nozzle |
m |
≥24 |
≥14 |
≥24 |
≥24 |
|
Water gun range |
m |
≥38 |
≥36 |
≥38 |
≥38 |
|
Water pump lift |
m |
110 |
110 |
110 |
110 |
|
Self-priming height |
m |
6.5 |
6 |
6.5 |
6.5 |
Flushing lanes by front nozzles
Sprinkling
Aerial cleaning
The front duckbilled device is for flushing the places such as roads and squares
