25 Tons Water Tanker with High Pressure Spraying

Product overview

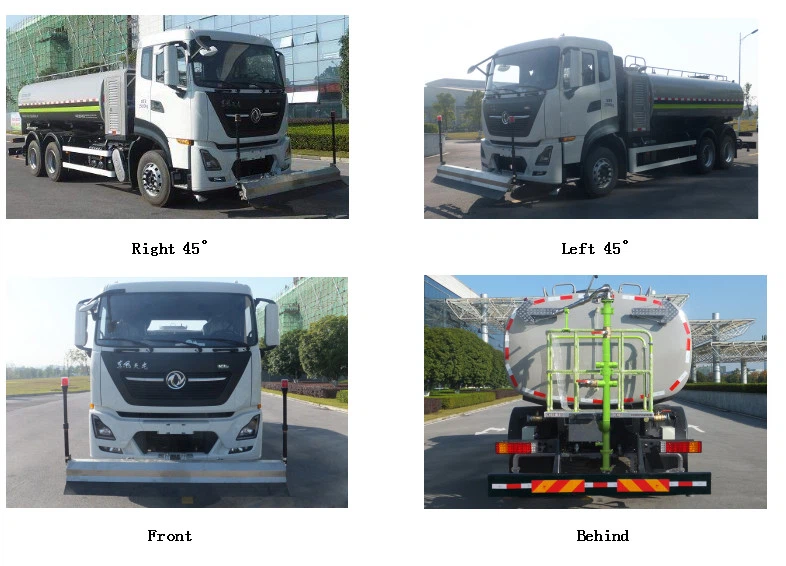

ZBH5252GQXDFE6 25 tons Water Tanker with High pressure spraying is an upgraded product developed by Changsha Zoomlion Environmental Industry Co., LTD. The product adopts dongfeng Tianlong BRAND DFH1250D4 truck chassis, with independent high and low pressure cleaning systems. The high-pressure cleaning system includes water spray rack, hand-held spray gun and other operating devices, and the low-pressure cleaning system includes two duck-nozzles before flushing, after hedging, after sprinkler, water cannon assembly and other operating devices. In addition, according to user needs, the product can be equipped with high-pressure Angle spray, self-priming, guardrail cleaning, lifting platform, upper spray, lower spray and other operating devices.
25 tons Water Tanker with High pressure spraying has various functions, beautiful appearance, high efficiency, environmental protection and reliable superior performance.

Functions overview

25 tons Water Tanker with High pressure spraying has two cleaning methods: high pressure cleaning and low pressure cleaning. The high-pressure cleaning system includes water spray rack, hand-held spray gun and other operating devices, and the low-pressure cleaning system includes two duck-nozzles in front, after hedging, after sprinkler, water cannon assembly and other operating devices.
The high-pressure water spray frame in the high-pressure cleaning system can be used to clean the old stains and sticky dirt on the square and road surface, while the hand-held high-pressure spray gun can be widely used to clean the general equipment including the product body.
In the low-pressure cleaning system, the front two duckheads, the back hedge and the back sprinklers can be respectively used for washing and sprinkling operations in roads, squares and other sites. The water cannon is suitable for remote flushing and sprinkler operations.
In addition, the product can be selected according to user needs, high pressure Angle spray, self-priming, guardrail cleaning, lifting platform, up and down spray and other operating devices.

Scope of application

The product is suitable for urban roads, highways, plazas, ports and other sites of cleaning operations, as well as green belt plants watering operations. Optional self-priming device can be used for the lack of pressure tap water site, to achieve independent water, expand the operating range of vehicles; Optional guardrail cleaning device can be used for highway and urban guardrail cleaning operations; Optional lifting platform can be used for road signs, billboards and other air facilities cleaning, maintenance operations; Optional spray system can be used for spray dust, heat prevention and cooling operations. Not suitable for use in the environment of cold weather and easy to freeze.

Main structure and performance characteristics

1、Chassis parts

• Chassis. Tianlong DFH1250D4 type 2 car chassis produced by Dongfeng Motor Co., LTD is used, with strong power and large bearing capacity. This chassis is the most advanced and most reliable national vi emission 25 tons commercial vehicle chassis at present.

• The engine. Dongfeng Cummins D6.7NS6B290 diesel engine, rated power 213kW, rated speed 2300r/min, maximum torque 1100N·m, emissions meet the national sixth standard.

2、Buy a sub - engine. Adopt jiangling JX493ZG3 diesel engine, rated power 64kW, rated speed 3000r/min, emissions up to national iii standard. The matching clutch is driven by cylinder, and the clutch separation and engagement are automatically controlled by electric control system without manual operation. At the same time, it also ensures the no-load start and no-load stop of the auxiliary engine, and prolongs the service life of the auxiliary engine.

The auxiliary engine and its transmission parts are directly connected, and the overall space is compact and orderly, which not only improves the efficiency and reliability of the transmission link, but also enhances the convenience of debugging and maintenance of the auxiliary engine and its transmission parts.
The working speed of the auxiliary engine is set in manual and automatic two adjustment modes, which can better meet the requirements of product debugging, maintenance and high-pressure cleaning. Using manual mode, the auxiliary engine speed can be stepless from idle speed to 2000r/min; Using automatic mode, the sub-engine speed is set to high, middle and low three gears, respectively 2000r/min, 1600r/min, 1200r/min.

3、The pitcher

• Pitcher. The announced volume of the water tank is 13.5m³, the actual loading volume is not less than 16m³, the water volume is large. The water tank is made of high quality carbon steel. The water tank is optimized by finite element analysis method and has passed strict reliability test. The water tank adopts sandblasting pretreatment technology and international famous brand Aksu paint anti-corrosion treatment, high efficiency anti-rust, durable (optional stainless steel and other materials of water tank). There is a water inlet on the left and right sides of the water tank, and the special structure design can realize the water tank quickly filling and discharging water. Water tank with low water level alarm, prevent water pump damage.

4、Cleaning device

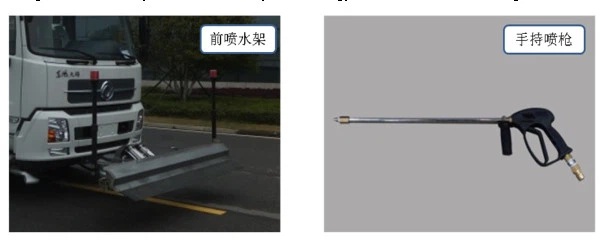

• Sprinkler stand and hand-held spray gun. The appearance of the spray frame is simple and generous, the width of the operation is 2.5-3.5m, and the deflection can be 30°. When encountering obstacles in front, the spray frame can shrink inward to avoid giving way, and automatically return to the normal working position after crossing obstacles. Hand-held spray gun cleaning flow 88L/min, cleaning pressure 10MPa, equipped with 8m long rubber hose, used for body cleaning, local road cleaning and other operations.

• Front spray, rear hedge and rear spray. Automatic control by electric control system, no manual operation. The main function is road surface, road flushing, as well as road, square sprinkler operation.

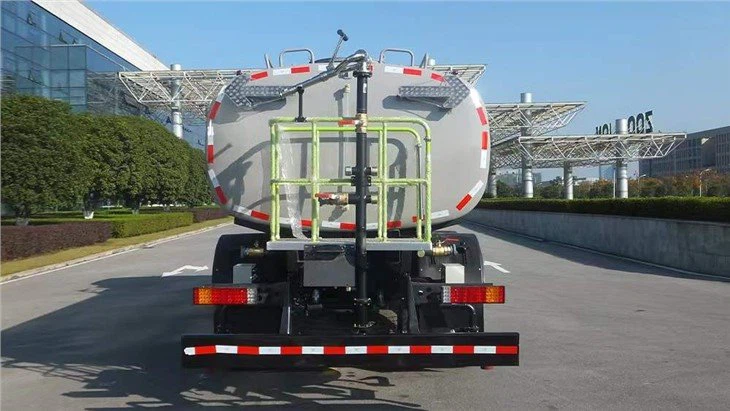

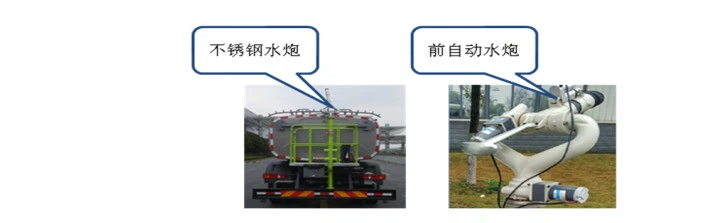

• Front automatic water cannon and rear water cannon assembly. The water gun assembly is used for remote flushing and auxiliary fire fighting operations. It can be rotated in all directions and the shooting range can reach 38m and 50m (optional). Front automatic water cannon (optional) is automatically controlled by electric control system without manual operation. It can also be used for remote flushing and auxiliary fire fighting operations, with a range of up to 38m and automatic rotation in all directions controlled from the cockpit.

5、High pressure cleaning device (optional)

• Spray up and down. The upper and lower spray can be separately selected for spray dust removal and heat prevention, which has better effect than low-pressure sprinkler spray system.

• High-pressure disk. The coil comes with 20m long high-pressure water delivery hose, which can be quickly connected with the hand-held spray gun, used for car body cleaning, local road cleaning and other operations;

• Sino - tension Angle spray. The pressure of a single nozzle is 10MPa, which can be used to clean the curb and barrier isolation pier. The cleaning Angle is adjustable, and the height of the nozzle from the ground is adjustable.

• Sino Hydraulic water jet rack. Hydraulic cylinder drive, lifting height 240mm to 450mm, left and right deflection ±30°, left and right spray rod can be linear expansion, maximum width 3.5m.

6、Low pressure cleaning device (optional)

• Cast around green watering. Used for green belt and other watering operations, left and right sprinkler heads can be controlled separately in the cab;

• Invest in green irrigation. Located at the top of the water tank, the number of sprinkler heads can be adjusted according to the need, and the nozzle Angle can be adjusted to form a different Angle of water curtain, used for green belt, garden watering operations;

• Imbibition. It can be used to add water to natural water source without pressure, such as canal and reservoir, with self-priming height up to 6.5m.

7、Brush rolling and lifting platform (optional)

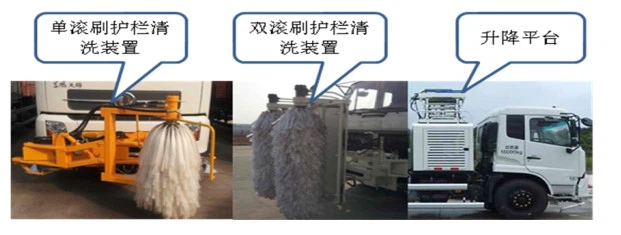

• Monolayer roller brush guardrail cleaning device. Optional highway guardrail cleaning device (rolling brush height 605mm) or urban road guardrail cleaning device (rolling brush height 1100mm), for cleaning operation of highway guardrail or urban guardrail;

• Double roller brush guardrail cleaning device. Optional highway guardrail cleaning device (rolling brush height 605mm) or urban road guardrail cleaning device (rolling brush height 1100mm), for cleaning operation of highway or urban road guardrail; (It can only be installed after the vehicle is registered)

• Lifting platform. It is used for cleaning and maintenance of roadside air facilities such as street lamps and billboards. The maximum lifting height after loading is 8.2m, and the maximum load of lifting platform is not more than 200kg. (It can only be installed after the vehicle is registered)

Main technical parameters of the product

Main advantage
