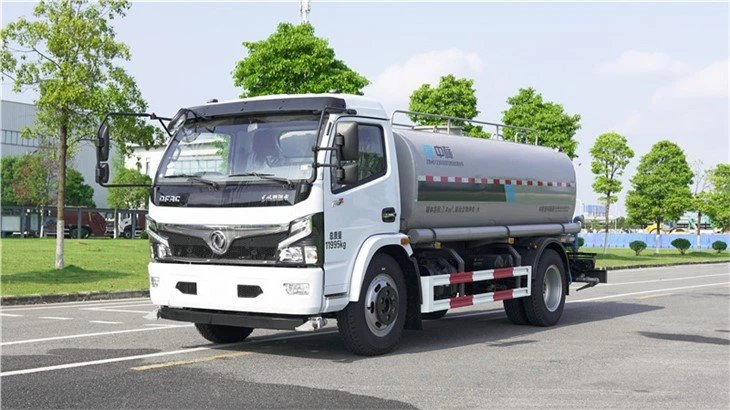

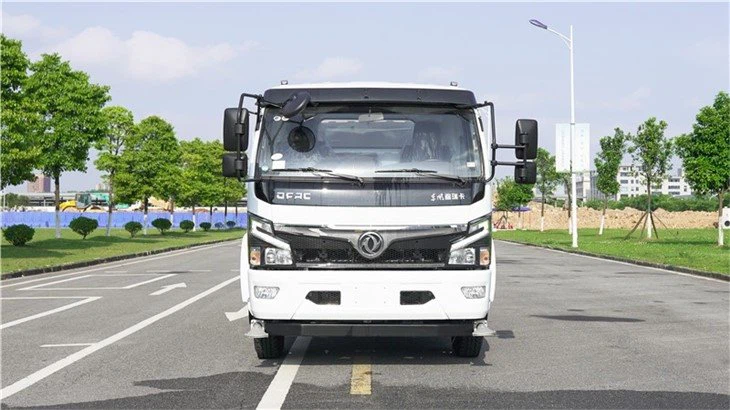

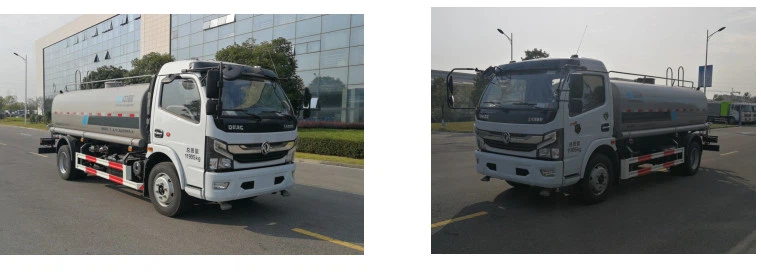

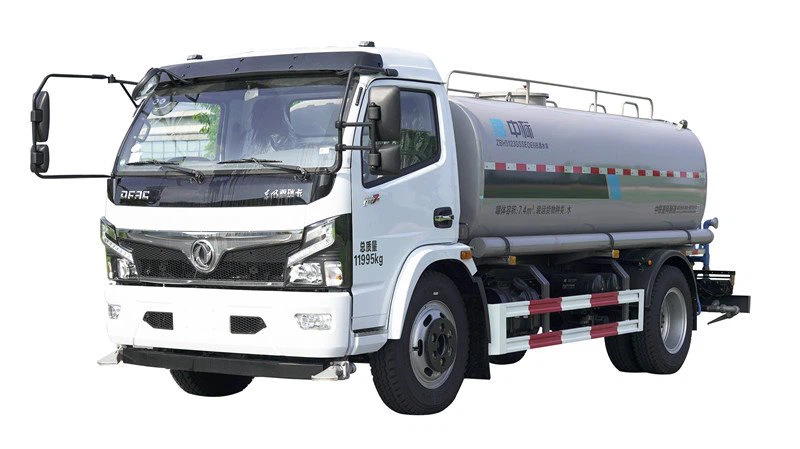

12 Tons Water Tank Truck

Product specification

ZBH5123GSSEQE6B 12 tons water tank truckis a new-type sprinkler developed by our company.It uses Dongfeng type Ⅱ chassis , adapted by special operating equipment and control system. Special Operating equipment including front duckbilled washing equipment, middle hedging washing equipment, rear sprinkling equipment and water cannon.

12 tons water tank truck is multiple in functions and handsome in appearance. It has efficient,environmental,reliable and superior performance.

Functions

12 tons water tank truck is achieved to spray water on the road and lay the dust,and is equipped with long-range water cannon which is available for spraying from a distance.

Application

It apply to urban road and square cleaning and water spraying operations.

Main structure &performance features

1、Chassis
Dongfeng kaipute EQ1125SJ8CDC automobile class II chassis is adopted for modification. The chassis has complete independent intellectual property rights and has the characteristics of portability, fuel saving and high reliability. Chaochai CY4SK361 or Yunnei D25TCIF1 engine has superior performance. Generally speaking, the chassis is a commercial vehicle chassis with high cost performance in China.
2、Water Cistern
The total volume of the water tank is 8.65m ³， Effective volume 7.4m ³。 The water tank has large volume and long working time. The water tank adopts the finite element analysis method to optimize the design, and has passed the strict reliability test. The water tank adopts advanced one-time can wrapping forming technology, robot automatic welding, penetration nondestructive testing, no water leakage and long service life. The water tank adopts professional anti-corrosion coating to ensure the anti-corrosion effect.
3、Low pressure waterway system
Low pressure water pump: it adopts famous self-suction double-impeller pump, rated speed is 1480rpm, rated working pressure is 0.9MPa, and rated flow is 60 m³/h.It has high efficiency and reliability.
Front duckbilled washing equipment: front duckbilled washing equipment is controlled by pneumatic on-off valve, applying to wash the road surface and curb. The spraying direction of duckbilled sprayer can be freely adjust through special structures. The spraying width is no less than 8m.
Middle hedging washing equipment: middle hedging washing equipment has conical jet both on the left and right side to support bidirectional washing,and these are all controlled by pneumatic on-off valve. The spraying angle is able to be freely adjusted through adjusting the spiral rotating sleeves. It is capable of washing 6 lanes at a time.

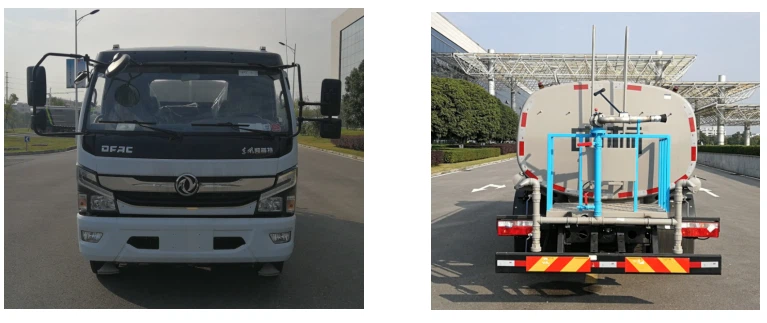

Rear sprinkling equipment : rear sprinkling equipment use pneumatic on-off valve to control on and off of rear sprinkler nozzle. The sprinkling width is no less than 14m when opening 2 rear sprinkler nozzles at the same time.
Greening watering device. The greening watering device is divided into left greening watering device and right greening watering device, which are installed on the left and right sides of the rear of the vehicle respectively, and the manual ball valve is used to control the opening and closing of the watering path.
Water cannon: water cannon is made of aluminum long-range water gun, being installed at the right side of operation table. The water gun can rotate 0～ 360 degrees, and the gun body support updown pitching operations.Turning and twisting the adjustment sleeving at front of gun body can adjust the water spraying shape (columnar or coniform) and turn off the water cannon.the water cannon is controlled by manual valve to switch on or switch off the water gun. The spraying distance is no fewer than 38m.
4、Operation method
The vehicle is controlled by manual ball valve, and each function can be controlled separately. The front duckbill device, rear hedge device, rear sprinkler and greening irrigation device are controlled by manual ball valve to open and close, which is convenient and flexible. The water monitor is opened and closed by manual ball valve and the water jet shape (cylindrical or conical) is adjusted. The music horn and power takeoff switch are integrated on the center console of the cab.

Main technical parameters

Main advantages
1. Superior performance
The water cistern is advanced in structure. The water cistern body uses Q235A material, the interior adopts anti-wave board buffering structure design, and underbed uses frame structure. These ensure the strength and stiffness of overall structures.

2.Excellent quality
High accessory configuration. Low pressure water pump is a well-known brand in China, with excellent quality and high reliability.

3.Safe and reliable
It has smart music player, which can play music during operating time to caution and remind the surrounding pedestrian to avoid.

Optional arrow light. It can play a warning role in the operation and remind the surrounding pedestrians to avoid.
4.Various Functions

It is equipped with front duckbilled washing equipment, middle hedging washing equipment, rear sprinkling equipment to spray water on the road and lay the dust.
Configure rear greening watering device. The green belt can be watered.
Equipped with long-range water cannon. Used for remote flushing or auxiliary fire fighting.
Equipped with self-priming device. It is used for sites lacking pressurized tap water. It can be used for adding water to non pressure water sources such as canals and reservoirs to realize independent water addition.
Configure reserved interfaces. Various functions can be expanded according to customers' personalized needs, such as pressure drainage through interfaces, etc.

5. Simple maintenance
The low-pressure waterway system is equipped with a filter screen, which can effectively filter impurities and prolong the service life of the low-pressure water pump. The filter is arranged at a position convenient for personnel operation.

Operating functions

Optional devices

FAQ:

What is the average size of a water tanker truck?

The average size of a water tanker truck can vary depending on the country and region. In the United States, water tanker trucks typically range in size from 2,000 to 10,000 gallons (7,570 to 37,850 liters). However, some larger water tanker trucks with capacities of up to 36,000 gallons (136,000 liters) are also available.

In other countries, the size of water tanker trucks may be smaller or larger depending on local regulations and requirements. For example, in India, water tanker trucks typically have capacities ranging from 1,500 to 6,000 liters. In Australia, water tanker trucks can range in size from 4,000 to 30,000 liters or more.

Overall, the size of a water tanker truck will depend on various factors, such as the intended use, local regulations, and the specific needs of the customer.

How much water does a large tanker truck hold?

A large tanker truck can hold a wide range of water volumes, depending on the size and type of the truck. In the United States, the standard size of a large tanker truck used for transporting water is around 8,000 gallons (30,280 liters). However, some tanker trucks are larger and can hold up to 10,000 gallons (37,850 liters) or more.

For example, in Europe, water tankers can have capacities ranging from 5,000 to 30,000 liters, while in Australia, tankers can hold anywhere from 4,000 to 45,000 liters. In developing countries, tanker trucks may be much smaller and hold only a few hundred or thousand liters of water.

Overall, the amount of water that a large tanker truck can hold will depend on various factors, including the size and capacity of the truck, the type of tank it uses, and local regulations and requirements.

How many Litres is a water tanker truck?

The capacity of a water tanker truck can vary depending on the size and type of the truck. The capacities are typically measured in gallons in the United States, while other countries may use liters. In the United States, water tanker trucks can range in size from 2,000 to 10,000 gallons (7,570 to 37,850 liters). Some larger trucks can have capacities of up to 36,000 gallons (136,000 liters).

In other countries, the capacity of water tanker trucks can vary widely. For example, in India, trucks typically have capacities ranging from 1,500 to 6,000 liters, while in Australia, trucks can hold anywhere from 4,000 to 30,000 liters or more.

Overall, the capacity of a water tanker truck will depend on various factors, such as the intended use, local regulations, and the specific needs of the customer.
