Multifunctional Dust-suppression Vehicle
The multifunctional dust-suppression vehicle researched and developed by Infore Zoomlion can realize multiple functions, including dust-suppression mist spray and road cleaning. The mist spray system features powerful airflow, good atomizing performance, long range, and extensive coverage and is applicable for the dust-suppression spraying in the outdoor powder material (Including coal,sand, and stone) storage yards and the dust-suppression spraying in the construction sites, building reconstruction sites, and leveling sites. Its low pressure water circuit system is provided with front duckbilled flushing, middle-mounted conical nozzle flushing, rear sprinkling, and rear water monitor functions. It’s applicable for the environmental dust-sup- pression of urban roads, cleaning of advertising boards, and irritation of road green belts and its self-priming device can be used for independent water refilling of the product.
Product Introduction
PERFORMANCE FEATURE
● HIGH-EFFICIENCY MIST SPRAY SYSTEM DESIGN
-Novel air blower drive mode: The air blower fan is powered by auxiliary engine hydraulic system to realize better environmental-friendliness and energy-saving and lower noise during operation.
-The two-stage impeller combination increases the wind pressure and wind speed. The lightweight vanes reduces the impact force onto the air blower during start to protect the hydraulic and power systems.
-The fan speed of the air blower is steplessly adjustable to meet the needs of different mist spray distances.
-The air blower is installed to muffler and the auxiliary engine compartment is enclosed on four sides to lower the operating noise of air blower
TECHNICAL PARAMETERS
| ITEM | UNIT | ZBH5181TDYDFE6 | ZBH5181TDYEQE6 | ZBH5181TDYCAE6 |
|
Wheelbase |
mm |
4500 |
4500 |
5000 |
|
Maximum capacity of water tank |
m³ |
9 |
9 |
9 |
|
Range of air cannon |
m |
≥80 |
≥60 |
≥100 |
|
Reach of air cannon |
m |
≥35 |
≥30 |
≥40 |
|
Pitching angle of air cannon |
° |
-20-60 |
-20-60 |
-10-40 |
|
Slewing angle of air cannon |
° |
-90-90 |
-90-90 |
-90-90 |
|
Conical flushing width |
m |
≥24 |
≥24 |
≥24 |
| TEM | UNIT | ZBH5181TDYDFE6D | ZBH5250TDYDFE6 | ZBH5310TDYDFE6 |
|
Wheelbase |
mm |
5000 |
4350+1350 |
1995+4600+1350 |
|
Maximum capacity of water tank |
m³ |
9 |
14 |
14 |
|
Range of air cannon |
m |
≥100 |
≥130 |
≥150 |
|
Reach of air cannon |
m |
≥40 |
≥50 |
≥55 |
|
Pitching angle of air cannon |
° |
-10-60 |
-10-60 |
-10-60 |
|
Slewing angle of air cannon |
° |
-90-90 |
-90-90 |
-90-90 |
|
Conical flushing width |
m |
≥24 |
≥24 |
≥24 |
The mist spray device is for dust-suppres-sion mist spray.
Center-mounted cone nozzle for road washing

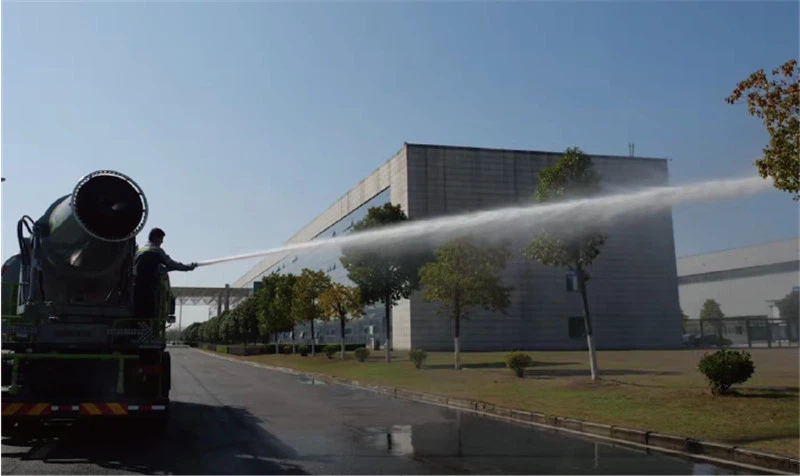

The rear stainless steel water monitor is for long-range flushing and auxiliary firefighting and is capable of omnibearing rotation.

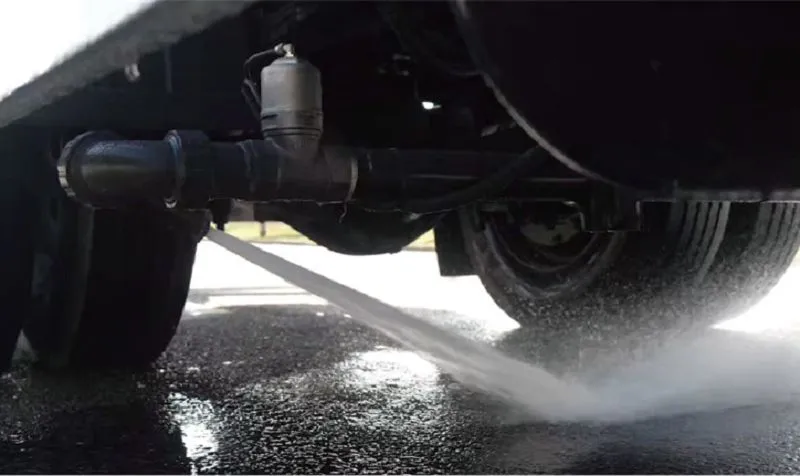

Rear sprinkler nozzle for dust sprinkling
