Introduction Of Type ZBH5043TSLSHABEV Electric Road Sweeper

Product specification

Vehicle overview: PURE ELECTRIC road sweeper is a small road sweeper dedicated to urban sanitation. The sh1047pcevnz pure electric chassis of SAIC Maxus Automobile Co., Ltd. is adopted for modification. In addition to the advantages of large cleaning width, high cleaning efficiency, no dust and no secondary pollution during cleaning, the vehicle also has the characteristics of low operation cost, low noise, zero emission and green environmental protection.

Functions

The upper oil pump motor drives the hydraulic oil pump to work. The hydraulic oil pump drives the lifting and rotation of the left and right sweeping plates. The left and right sweeping plates sweep the garbage on both sides of the vehicle to the lower part of the road sweeper and in front of the suction nozzle; The electric diaphragm pump is started to deliver the water from the water tank to the sweeping disc nozzle and suction nozzle, and the water mist ejected from the nozzle will reduce the dust on the sweeping disc and suction nozzle to avoid secondary pollution caused by dust; At the same time, the fan motor starts to drive the centrifugal fan. The fan generates high-speed air flow in the air duct composed of dustbin, suction pipe and suction nozzle. Under the action of air flow, the garbage is sucked into the suction nozzle and enters the dustbin through the suction pipe.

Scope of application

Applicable working environment: it is applicable to the mechanized cleaning of urban roads, highways, airports, docks, bridges, squares and communities with a working radius of less than 50km.

The ambient temperature shall be higher than 0 °, and the road slope shall be less than 20%.

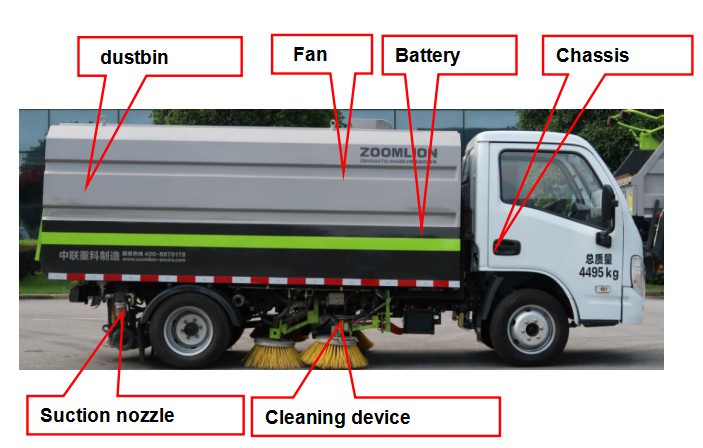

Main structure &performance features

1. Chassis

Chassis. The chassis sh1047pcevnz is manufactured by SAIC Maxus Automobile Co., Ltd. with excellent power, safety and reliability.

Drive motor. Tz249xsc7by001 permanent magnet synchronous motor of Suzhou zhonglianneng innovative energy technology Co., Ltd. is adopted, with rated power of 40kW and rated speed of 1700r / min; The peak power is 75kW and the peak speed is 5000 R / min.

Drive motor controller. Ktz36x30s01 controller of Suzhou zhonglianneng innovative energy technology Co., Ltd. is adopted.

2. Suction nozzle

Horseshoe shaped follow-up ordinary suction nozzle can automatically level with the ground conditions, with large cleaning capacity and fast cleaning speed; The suction nozzle has short front suspension and large ground clearance, so the vehicle has good trafficability during transfer transportation.

3. Cleaning device

PURE ELECTRIC road sweeper has the function of automatic obstacle avoidance protection and automatic reset. The sweeping disc automatically retracts after encountering obstacles and automatically resets after crossing obstacles. This function effectively solves the problem of easy collision and damage of the sweeping device, and has the advantages of simple structure, convenient and fast installation and use, wide application range, high work efficiency and low maintenance cost.

4. Dustbin

Single vehicle can load 1.3m3 garbage; The garbage box is made of full 304 stainless steel plate with no framework structure. The inner layer is smooth, corrosion-resistant, non stick garbage, and convenient for unloading and cleaning.

5. Fan

The motor and fan are driven directly. Users can freely adjust the fan speed according to their needs. With strong suction, it can absorb common road garbage, mud and sand, small stones and light floating objects.

7. Safety protection system

It has the functions of automatic reverse suction nozzle, dustbin strut protection, as well as a variety of voice safety tips such as opening the back door of the dustbin, dumping garbage, operation music and so on.

The dustbin lifting cylinder is equipped with a balance valve group, which has the function of anti falling when lifting the dustbin. At the same time, it is equipped with a safety brace lowering alarm device to protect the safe lowering of the dustbin.

8. Operation mode

The vehicle adopts the control mode of "display + controller + can bus operation panel". When the operation is started and stopped, the motor speed control, suction nozzle lifting, sweeping, retracting and releasing and other operation devices are all controlled by one key, which is easy to operate, effectively reduces the working intensity of the driver and improves the safety. It can monitor the working condition of the vehicle in real time.

The vehicle is equipped with a manual pump emergency system to ensure that the working device can be retracted and the dustbin can be lifted under the shutdown state of the motor, which is convenient for maintenance.

Main technical parameters

Item		Unit	Parameter
vehicle parameters	Curb mass	kg	2940
	Max total mass	kg	4495
	Rated load mass	kg	1425
	Shape size(lengths*width*height)	mm	5300×1660×2150
	Min ground clearance	mm	150
	Approach angle / departure angle	°	18/15
Vehicle parameters	Chassis model, category and manufacturer	SH1047PCEVNZ SAIC Trpe II chassis
	Passengers	2
	Rated power of drive motor	40kw/1700r/min
	Peak power of drive motor	75kw/5000r/min
	Battery type	Lithium iron phosphate battery
	Total energy storage capacity of energy storage device	66.84 kW·h
Operating performance	Maximum sweeping width	m	2.4
	Operation speed	km/h	3～10
	Cleaning speed	km/h	10～25
	Maximum sweeping capacity	m2/h	60000
	Cleaning efficiency	%	≥90
	Effective volume of dustbin	m3	1.3
	Maximum discharge angle of dustbin	°	≥45
	Clean water tank volume	m3	0.75
driving	Maximum speed	km/h	90
	Maximum climbing angle	%	20
	Braking distance (full load 30km / h)	m	≤10
	Minimum turning diameter	m	13

Main advantages

Superior performance

The garbage box structure is advanced. The full 304 stainless steel plate is used to manufacture the dustbin. The full plate frameless structure not only makes the appearance novel, but also enhances the strength and stiffness of the dustbin and reduces the self weight. The inner layer is smooth and corrosion-resistant, does not stick to garbage, and is convenient for unloading and cleaning. The volume of the dustbin reaches 1.3m3. The switch locking mechanism of the rear cover door of the dustbin can press the door and seal and self lock after the door is fully closed. The switch locking mechanism of the door sealing has the advantages of simple manufacture and reliable sealing effect.

Disk sweeping: the sweeping device has the function of automatic avoidance protection and automatic reset in case of obstacles. The sweeping disc automatically retracts after encountering obstacles and automatically resets after crossing obstacles. This function effectively solves the problem of easy collision and damage of the sweeping device, and has the advantages of simple structure, convenient and fast installation and use, wide application range, high work efficiency and low maintenance cost.

Suction nozzle and fan: the suction nozzle can meet the suction requirements of different sizes of objects to be inhaled under the traction of the rear wheel and connecting rod mechanism at the lifting angle around the pin shaft. It can relatively effectively clean different types of garbage, enhance the adaptability of the operation, and can quickly and efficiently clean different garbage, which significantly improves the convenience of sanitation cleaning and improves the work efficiency. The pneumatic conveying system adopts high-efficiency special fan and high-efficiency suction nozzle, with strong suction, which can absorb common road garbage, mud and sand, small stones and light floating objects. The motor and fan are driven directly. That is, the fan impeller is directly installed on the motor output shaft, which simplifies the transmission mechanism and reduces the fault points.

2. Superior in quality

High accessory configuration. The hydraulic system adopts superimposed electromagnetic hydraulic valve group, which is highly integrated, neatly arranged, beautiful and easy to maintain. The layout of hydraulic and pneumatic pipelines is reasonable, simple and beautiful. Many high-quality imported components and accessories from first-class manufacturers at home and abroad are used for transmission parts, hydraulic parts and electrical components, with excellent quality and high reliability.

3. Safe and reliable

Equipped with voice alarm system. It can send out various voice alarms and prompt messages during operation and unloading.

Equipped with dustbin safety brace and balance valve. The lifting oil cylinder provides the power for lifting the dustbin and balances the hydraulic valve group to prevent the dustbin from falling; The safety brace supports the dustbin to prevent accidental falling; Double protection ensures safe and reliable maintenance

Set the emergency system of hydraulic hand oil pump. The hand oil pump has two oil outlets, which can lift the suction nozzle or sweep the plate through the electrical keys, so as to facilitate the emergency repair and maintenance of the vehicle.

4.Easy maintenance

The structural design is reasonable and the quality of parts is reliable. The motor and fan adopt direct drive to reduce the fault point. The display screen in the cab has fault display function, which is convenient for installation and maintenance; The hydraulic pipeline and electrical pipeline are arranged in order to facilitate fault finding and component replacement. The design of all parts has been fully considered and sufficient maintenance space has been reserved. A large number of high-quality international and domestic well-known brand accessories are adopted, the product quality is guaranteed, and the probability of product failure is greatly reduced.
