Product overview

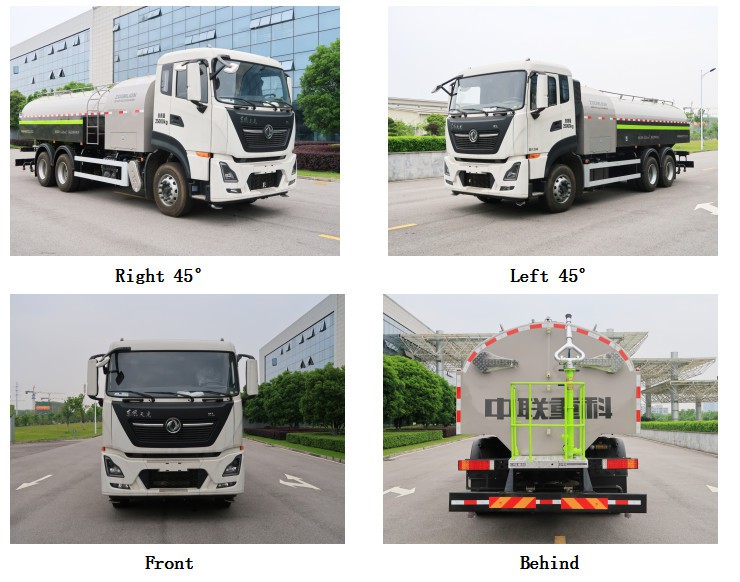

ZBH5255GQXDFE6 25 tons Water Tanker with Low pressure spraying is a new cleaning car developed by the company. The vehicle adopts dongfeng commercial class II chassis, with special operating devices and control system refitted. Special operating equipment includes front duck-tip flushing unit, rear hedge flushing unit, rear sprinkler unit and water cannon.
25 tons Water Tanker with Low pressure spraying has various functions, beautiful appearance, high efficiency, environmental protection and reliable superior performance.

Functions overview

Can realize the road surface washing and sprinkling dust; Equipped with long range water gun, can be used for remote flushing.

Scope of application

Suitable for urban road, square cleaning, sprinkling operations.

Main structure and performance characteristics

1、Chassis
Dongfeng Commercial Vehicle Co., LTD. DFH1250D4 type ii chassis modification, the chassis follows the advanced European technology, with strong power, strong bearing capacity, high reliability characteristics, at the same time, the chassis adopts Dongfeng Cummins D6.7NS6B290 engine, to meet the national vi emission standards. Overall, the chassis is the most advanced and reliable commercial vehicle chassis in China.
2、 Water pipe
The total volume of the water tank is 19.7m³, and the effective volume is 13.5m³. Sufficient effective volume ensures the long working time of the product. The tank body adopts finite element analysis method to optimize the design, and has passed the strict reliability test. The tank adopts the advanced disposable packaging tank forming technology, the robot automatic welding, penetrative non-destructive testing, no water leakage, long service life, the tank internal uses epoxy coal asphalt paint professional anti-corrosion coating, to ensure the anti-corrosion effect.
3、Low pressure waterway system

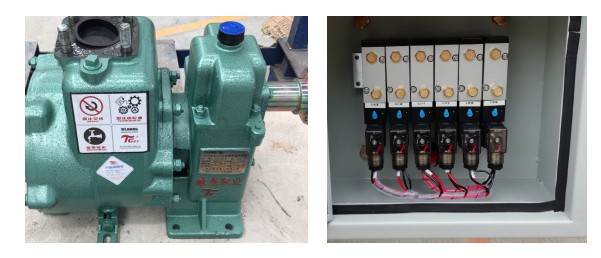

Low pressure water pump. Adopt famous brand self-priming two-stage centrifugal pump, rated speed 1480rpm, rated working pressure 1.1mpa, rated flow 50 m³/h, high efficiency, good reliability.

Front duckbill washing device. The front duck-nozzle flushing device is controlled by pneumatic cut-off valve, which is suitable for washing road surface and road edge. The flushing direction of duck-nozzle can be adjusted arbitrarily by special structure, and the flushing width is not less than 8m.
Back hedge flushing device. After the hedge washing device has a conical nozzle left and right, two-way washing, are controlled by pneumatic cutting valve, through adjusting the rotating sleeve, can adjust the nozzle Angle, after the hedge can wash 6 lanes.
Rear sprinkler. The rear sprinkler adopts pneumatic cut-off valve to control the opening and closing of the rear sprinkler, and the width of the sprinkler is not less than 14m when the two rear sprinkler is opened at the same time.
Water cannons. The long range water cannon is made of aluminum and mounted on the right side of the rear table. Water gun can be 0° ~ 360° rotation, gun body can be up and down pitching operation. Turn the adjusting sleeve in front of the gun body to adjust the jet shape of water flow (cylindrical or conical) and close the gun. The water gun is controlled by manual ball valve and can be opened and closed. The range of the water gun is not less than 38m.
4、Job operation mode
The vehicle adopts the combined control mode of "electrical control + manual operation". The front duckbill device, the rear hedging device, the rear sprinkler are controlled by electricity and gas on and off, convenient and flexible operation, by the operating box in the cab, the operating box is located on the right side of the driver seat, used to control the front duckbill device, the rear hedging device, the rear sprinkler operation. Water cannon by manual ball valve control on and off and adjust the water jet shape (column or cone).

Picture of the overall layout of the cab
Main technical parameters of the product

Main Advantages
1.Superior performance
The water tank is advanced in structure. The water box is made of Q235A material, the interior is designed with anti-wave plate buffer structure, and the bottom frame is made of frame structure to ensure the overall structural strength and stiffness.

2.Good quality
High accessory configuration. Low pressure water pump, solenoid valve, electrical control components for domestic well-known brands, good quality, high reliability. Electromagnetic valve installed in a special valve box, reliable protection, low failure rate.

3.Safe and reliable
Smart music player. Can play music in the operation to warn, remind pedestrians around pay attention to avoid.

Equipped with arrow light. Can play a warning role in the operation, remind pedestrians around pay attention to avoid.
4. Multifunctional

Equipped with front duck mouth, after sprinkling, after hedging device. Can realize the road surface washing and sprinkling dust.

Equipped with a long range water cannon. For remote flushing.
Configure multiple reserved ports. Can expand a variety of functions according to customer's personalized needs, such as optional up and down spray, left and right greening watering, upper greening watering, self-priming, salt mixing, etc.
5. Simple maintenance
The low-pressure waterway system is equipped with filter three-way filter and sewage valve, which can effectively filter impurities to prolong the life of the low-pressure pump, and discharge impurities in time through the operation of the sewage valve to reduce the cleaning frequency of the filter, and the filter and manual control valve are arranged in the convenient position of personnel operation.

Job function

Optional device
