YJC400B  Garbage station vertical collection complete set of equipment is our company according to the specific situation of domestic sanitation equipment, learn from the advanced technology and process of garbage treatment at home and abroad and developed patent products. It is mainly used for the collection, compression and volume reduction of household garbage and solid waste in urban settlements, factories, mines and institutions and colleges. Garbage station vertical collection has a number of patented technologies in waste compressors, dustbins and transfer vehicles.

5182ZDJ series garbage truck is a new type of fully sealed dump garbage carrier developed by our company. It is used together with YJC400B vertical garbage compressor and combined into medium or large compressed garbage transfer station complete set of equipment. The vehicle is beautiful in appearance, comfortable to drive, easy to operate, flexible and reliable, and widely used for airtight transfer of municipal solid waste.

Product features and advantages

1. High compaction density of garbage: the equipment has a large compression force. After the garbage is compressed, the density can reach 0.9 tons /m³, and it is dehydrated and clean;
2. The equipment occupies a small area: there is no other equipment except compressor, pump station and spray dust water tank, which is more convenient in sewage discharge and deodorization, and the working environment is greatly improved;
3. Using advanced relay compression technology to reduce the height of the equipment: the use of parallel installation of three relay cylinders (patented technology), greatly reduce the height of the equipment, thus reducing the height of the building requirements, reduce the cost of civil construction.
4. Ball hinge connection is adopted between the head and the compression cylinder: the head and the cylinder can be arbitrarily deflected in a certain range, when the garbage is not flat compression, the compression cylinder is not biased load, effectively protect the compression cylinder;
5. Adopt integral box structure: compression bin, storage bin, push and shovel mechanism integrated (patented technology), improve the operation efficiency and reliability of equipment, realize the closed operation of garbage compression process, is conducive to environmental protection and achieve the whole machine automation work requirements;
6. The guide between the pressure head, the dustbin and the column adopts the floating slider mode (patent technology) : the contact surface force area is large, the column is not deformed, easy to adjust, good maintenance;

7. Automatic, manual two kinds of control: when the electrical system failure or debugging maintenance, manual operation of the hydraulic system to continue to work, so that the machine has a high fault resistance, for equipment maintenance and debugging provides great convenience;
8. Adopt a variety of environmental protection measures to reduce environmental pollution: garbage station using spray washing deodorization system, air deodorization system, sewage collection and discharge system, pressure head automatic closure, noise control, pit flushing system and other equipment and measures to protect the environment, for the creation of clean and civilized garbage station to create conditions;
9. Adopt electrical and hydraulic components of international famous brands to ensure the reliability of the system.

Garbage station complete equipment configuration

Refuse station equipment		The number of	Note
Vertical garbage compressor	Compression systems	1	The compressive strength of 100 t
	Dustbin assembly	1
	Sewage collection and discharge system	1
	Spray dust washing system	1
	Anti-fall device for box body	1	Hydraulic locking and opening
	The hydraulic system	1	22KW，21MPa
	Electrical control and manipulation system	1
	Pit flushing system	1	options
	Air deodorization system	1	options
5182ZDJ series garbage truck		According to the amount of garbage and transport distance

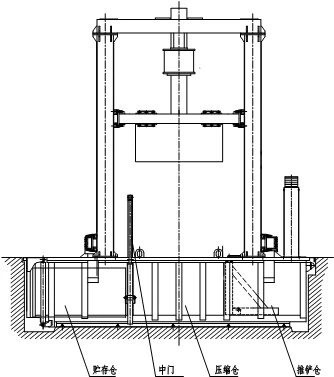

Schematic diagram of YJC400B vertical garbage compression station complete set of equipment

Main indexes and performance parameters of complete set of Garbage station vertical collection

Main indicators of complete set of garbage station equipment
Daily garbage disposal capacity (7 hours of operation)	80 tons/day
Processing form	Preloading type
Compression way	The vertical compression
Transport way	Airtight transport
Applicable garbage category	Household garbage, solid waste
Applicable garbage collection mode	Rickshaw collection, small motor vehicle collection
Scope of application	Urban community, residential area, institutions, colleges, etc

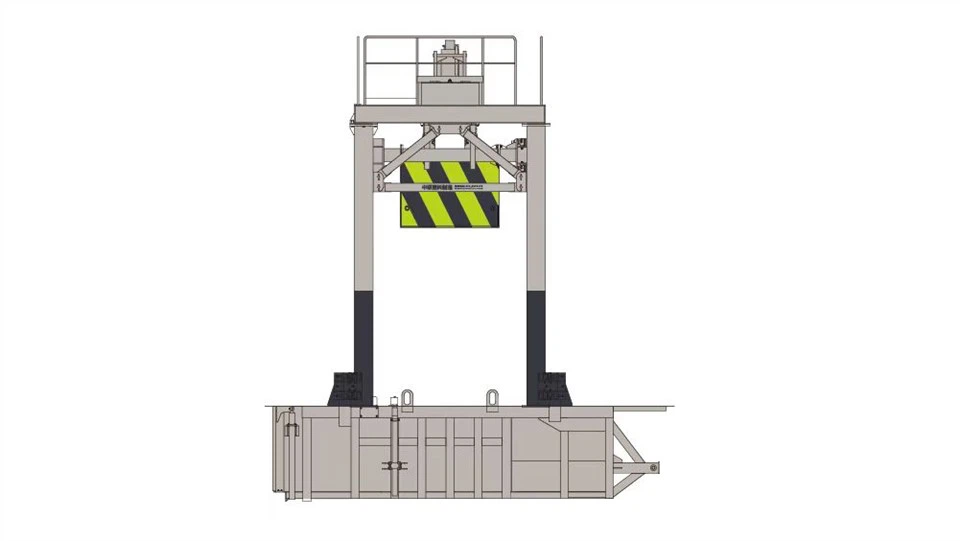

Vertical garbage compressor
Compressor dimensions (length × width × height) :	5725×3250×6200
Garbage disposal capacity t/d	80
Rated compression force t	100
Compressed warehouse volume m³	5.0
Garbage block size (l × W × H) mm	1600×1850×1400
Garbage block weight t	2x4 = 8 (a box of 2 pieces, 8T in total)
Hydraulic system rated working pressure MPa	21
power kW	22
The power supply v	380 (three-phase AC)
The weight t	20
Sewerage system
Power: kw	1.1
Head: m	7
Sewage discharge capacity: m³/h	18
Spray dust washing system
Power:	1.3 kW
Pressure:	7MPa
Traffic:	7.5L/min
Pit cleaning System (optional)
Power kw	4
Lift m	30
Traffic m³/h	25

Introduction to process flow

Garbage dumping and compression (Figure 1)The urban residents' household garbage is collected by the trolley and transported to the station and poured into the dustbin placed in the pit. After the loose garbage is filled to the dustbin, the vertical compressor is operated for compaction, and then the pressure head is raised to continue to dump and compress garbage. Generally, a piece of garbage can be compressed after three compression cycles.

2.The garbage block shifts and compresses the second garbage block
When a piece of garbage pressure, control system, first promote the trash bin assembly in the door, and then by the garbage bin assembly in the shovel will be pushed into the garbage bin storage bin, and then the door and push shovel reset. Repeat garbage dumping, compression cycle, good pressure of the second piece of garbage.
3.The dustbin is connected with the carriage and unloaded
Lift the dustbin to the height corresponding to the carriage of the transfer car, and reverse the transfer car into the station. After docking the carriage with the dustbin, push the two pieces of garbage in the garbage box into the empty carriage through the push shovel mechanism. The transfer truck moves forward and disengages from the bin. The bin assembly is returned to the pit for the next operation.

4. Garbage transit
Operate the closing mechanism of the rear door of the carriage, close the sealed back door of the garbage transfer vehicle, and then the garbage transfer vehicle will leave the garbage station and take the garbage to the landfill.
