Product overview

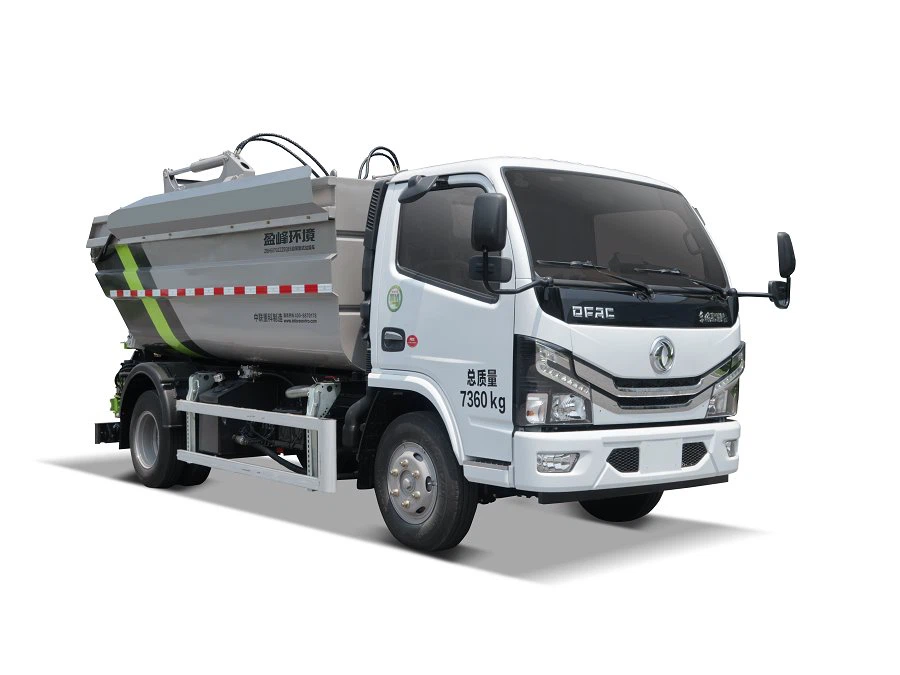

ZBH5070ZZZEQE6 7 tons Self-loading and Dumping Garbage Truck is a self-loading garbage truck developed by Changsha Zoomlion Environmental Industry Co., LTD according to market needs. The car is beautiful in appearance and innovative. It is refit from special working devices such as dustbin, bucket turning mechanism, sub-frame, pressure filling mechanism, hydraulic system and electric control system etc. on the second class chassis.

7 tons Self-loading and Dumping Garbage Truck is suitable for the collection and transportation of urban garbage, mainly used for the collection and transportation of 120/240/660L standard plastic bucket household garbage; It can be used with large garbage compression truck.

Functions overview
It has many functions, such as garbage collection, garbage transfer, post-high garbage loading mode, garbage compression and docking unloading.

Scope of application
ZBH5070ZZZEQE6 7 tons Self-loading and Dumping Garbage Truck products can match 120L/240L/660L standard plastic bucket.

Main structure and performance characteristics

1. Chassis
The chassis. Dongfeng Motor Co., LTD. EQ1075SJ3CDF type ii chassis, strong power, strong bearing capacity, the chassis is advanced, reliable quality of the sixth national emission chassis.
The engine. Adopt q23-115E60 diesel engine made by Anhui Quanchai Power Co., LTD., rated power 85kW, rated speed 3000r/min, emissions meet the national sixth standard.
2、Bin
Dustbin feeding mode is rear loading, unloading mode is after tipping unloading.
Dustbin is fully sealed design, with scraper and slide plate pressure filling mechanism, can compress loose garbage, high net load and transfer efficiency, low operating cost.
3、 Feeding mechanism
The bin is equipped with double bucket feeding mechanism at the back, which can match 120L/240L/660L standard barrel.
4、 Job operation mode
The vehicle adopts the control mode of "controller +CAN bus". The use of domestic and foreign high quality electrical components, according to different requirements of the preparation of different control procedures, intelligent control, safety control and humanized control operation, and the controller has short circuit self-protection, so the system has strong unity, high reliability, easy to operate, maintenance and other characteristics.
Vehicle operation:
1) Cockpit operation box. Located in the right front of the instrument panel of the driver's seat, on the panel of the central console of the driver's cab, it is mainly used for operating lights, unloading, emergency stop, selection of working conditions and other operations.
2) Emergency stop button. A button on the left center of the vehicle for emergency stop.
3) Remote control. Used to control the feeding, unloading and pressure filling cycle of dustbins.
4) Rear operation panel of vehicle. Located at the right rear side of the vehicle, mainly used for the dustbin feeding, unloading, pressure filling cycle.

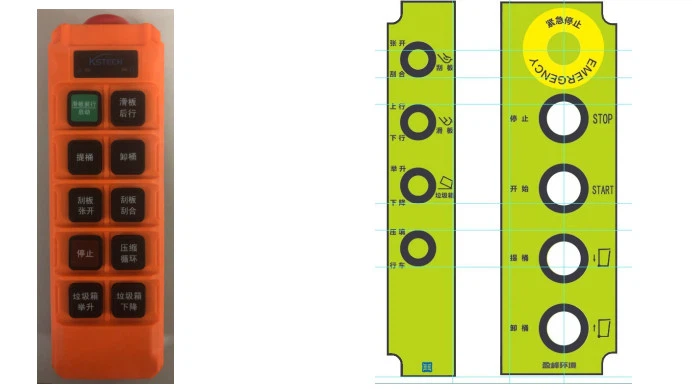

Figure 1: Cab operating box Figure 2: Emergency stop button box on the left side of the vehicle

Figure 3: Wireless remote control Figure 4: Vehicle right rear operation panel

Main technical parameters of the product

Project		Unit	Parameters
The vehicle parameters	Vehicle readiness mass	kg	4360
	Maximum gross mass	kg	7360
	Rated load mass	kg	2870
	Overall dimensions (length × width × height)	mm	5903×2000×2510
	Minimum ground clearance	mm	190
	Approach Angle/departure Angle	°	27.7/12
The chassis parameters	Chassis model, category and manufacturer	EQ1075SJ3CDF, Second class chassis, Dongfeng Motor Co., LTD
	Take the number of	2
	The wheelbase	mm		3308
	Engine model and manufacturer	Q23-115E60、 Anhui Quanchai Power Co., LTD
	Engine rating	85
	Maximum net power of engine	82
	Transmission model	5GT32
	Transmission type	5.595/2.848/1.691/1.000/0.794/R5.347
Job performance	Feeding cycle time	s	≤23
	Discharging cycle time	s	≤60
	Compression cycle time	s	≤20
	Matching garbage can		120L,240L,660L
	Bin volume	m³	7
	Width of trash bin discharge port	mm	1770
Driving performance	Maximum speed	km/h	110
	Maximum climb	%	30
	Minimum turning diameter	m	14.7

Main Advantages
1.Superior performance
The bin. Garbage box structure is advanced. The whole force structure design is reliable, the mechanism is firm and reliable, the bottom plate and the side plate are made of high strength and high quality steel bending forming, the bottom plate adopts no beam design, the rigidity matches reasonably, the dumping of garbage is convenient, easy to clean. Dustbin adopts leak-free boat design to ensure no sewage leakage. Both sides of the box are arranged with stainless steel cylinder cover, beautiful appearance.

Pressure filling mechanism. The pressure filling mechanism is arranged on the dustbin. It is a device for compressing and filling loose garbage. The pressure filling device is composed of scraper and scraper cylinder, skateboard and skateboard oil cylinder and slide block and other components. The scraper is installed on the skateboard and can rotate. The skateboard is installed on the upper part of the dustbin and can reciprocate along the rails on both sides of the dustbin. Pressure filling mechanism can compress loose garbage, high net load rate and transfer efficiency, low operating cost; When driving the skateboard scraper completely cover the garbage, eliminate the garbage floating, reduce secondary pollution.

Feeding mechanism. The feeding mechanism is arranged at the tail of the dustbin, which is the device for collecting garbage from the bin. The feeding process includes three steps: hanging bucket, lifting bucket and turning bucket. The mechanism is stable and reliable, and the operation efficiency is high. Can dump 2 240L plastic bins at one time, can turn 120L/240L/660L plastic bins, high applicability; Using high discharge way, reduce sewage leakage, discharge fast, clean, reduce secondary pollution.

2. Good quality
High accessory configuration. Hydraulic, electrical control components for international or domestic well-known brands, good quality, high reliability.

Aluminum alloy fence. Side guardrail is made of aluminum alloy profile, the overall appearance is beautiful, and can realize full recycling, eliminate capital waste and environmental pollution.

3. Safe and reliable
Equipped with buzzer alarm system. The buzzer can give an alarm sound when discharging material.
Equipped with dumpster safety brace. Provides reliable safety protection during maintenance operations.
The left and right sides are equipped with emergency stop buttons. In case of danger, the operation can be stopped immediately to ensure safety.
Safety legs are provided at the rear of the vehicle. Dustbin unloading safety legs open to ensure the stability of the vehicle unloading.
The body is equipped with a number of safety warning stickers. Prompt the operator, pay attention to safety.

Job function

Working mode of garbage truck:
Step 1: Drum garbage collection;

Step 2: Docking unloading or direct shipment.
