Multifunctional Snow Sweeper

25t multifunctional snow sweeper incorporates the high-speed snow sweeping, high-speed snow pushing, solid spreading, prewetting spreading, and sprinkling functions and is suitable for the ice/snow removing operations for municipal engineering, expressways, national and provincial main roads, and airports.

Send Inquiry

Product Introduction

PERFORMANCE FEATURE

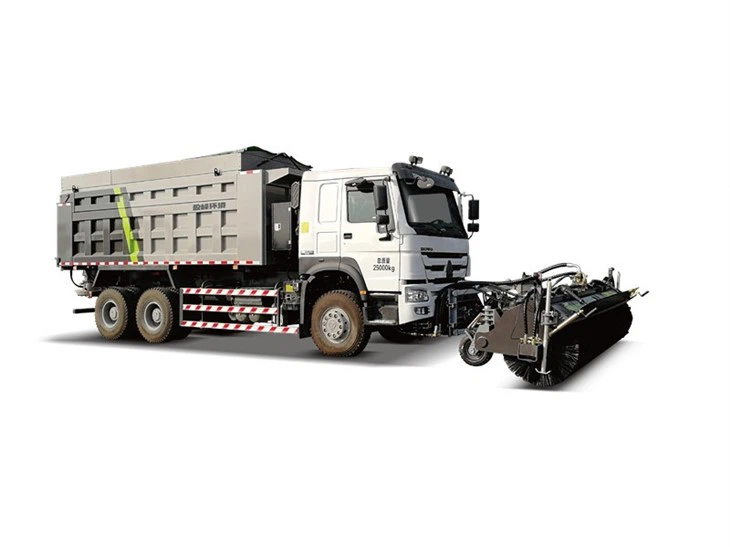

-Zoomlion Environment 25t snow sweeper is built on the SINOTRUK Howo dump truck chassis (Standard configuration).
-The optional heavy-duty high-speed snow shovel, snow-removing rolling brush (Medium-speed and high-speed rolling brushes), spreader, water tank system, side wing shovel, and ice scraper are offered to realize multiple functions.
-With industry’s largest diameter and China’s fastest speed and largest motor torque, the rolling brushes are hydraulically and mechanically floated during operations.
-The snow shovel incorporates two-stage obstacle avoidance function. Both shovel body and blade are in four-piece segmented structure and incorporate the obstacle-avoidance function. The snow shovel can remove the accumulated snow on the curbs.
-This vehicle can also be used as container-detachable snow sweeper and realize the quick interchange between solid spreader and liquid sprinkler (Water tank system) by hooklift.

TECHNICAL PARAMETERS

ITEM	UNIT	ZBH5250TCXCAE6	ZBH5254TCXZZE6	ZBH5250TCXZQE6
Wheelbase	mm	4300+1350	4625+1350	4325+1350
Chassis power (Horsepower)	-	380	380	380
Speed of rolling brush	r/min	250,450	450	450
Maximum snow sweeping speed	km/h	30,50	25,50	50
Maximum snow sweeping width	mm	3700/4200	3660	3700/4200
Water tank capacity	m³	13	14	13
Spreading width	mm	1.2-12	2-12	1.2-12
Maximum spreading speed	km/h	60	60	60
