Leak-free Garbage Compactor Truck

Through the sufficient research of household waste collection and transport modes both home and abroad, Zoomlion Environment independently designed and developed the leak-free garbage compactor truck, which is continuously leading the market. Compared with traditional garbage compactor truck, this vehicle cancels the pre-compactor and installs the compacting mechanism on the top of waste tank. In addition, the waste tank adopts the hull type bottom design with uplifted baseplate tail to form a unique enclosed structure to thoroughly eliminate the sewage dripping and leakage of garbage compactor truck. It’s mainly suitable for the collection and transport of household waste in 120/240/660L standard plastic containers for township residential areas, large factories and mines, and institutions and universalities.

Send Inquiry

Product Introduction

PERFORMANCE FEATURE

● HIGH LEAKPROOFNESS AND ENVIRONMENTAL-FRIENDLINESS AND ZERO SPILLING AND LEAKAGE
-The hull type baseplate design with national invention patent technology for the waste tank features powerful water accom- modation capacity and eliminates the sewage dripping and leakage problem.

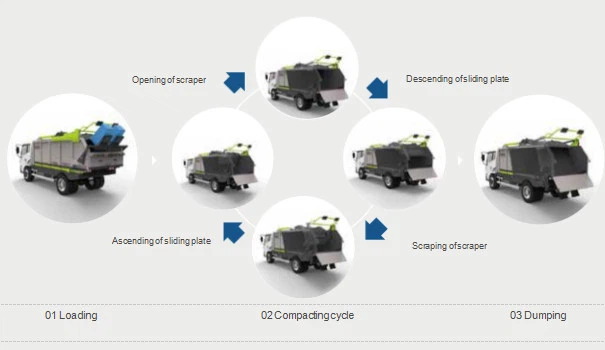

-The unique compacting mechanism design on the top of tank keeps the waste under sealed mode during compacting and transport to eliminate the secondary pollution problem.
-The adjustable rear gate design and the rubber sealing strip compression compensation function for the waste tank double the guarantee of tight rear gate and prevent the dripping and spilling.

● QUALITY GUARANTEE AND HIGH STABILITY AND RELIABILITY
-The automatic engine power output control technology reduces the power consumption during working, improves the fuel economy, and lowers the operating noise.
-The critical electric and hydraulic parts adopt imported products to guarantee product reliability.
-The critical positions of waste tank are made of high quality weather-resistant steel to guarantee high strength and corrosion resistance.

● HIGH SAFETY AND INTELLIGENCE AND EASY OPERATIONS
-“CAN bus + professional controller mode”guarantees higher reliability, stability, and automation level.
-The high-definition LED monitoring system all-round monitors the compacting, loading, and dumping processes to realize safe operations.
-Two control boxes within the cab and on the vehicle tail respectively complete the main operating modes by one-touch to prevent maloperations.

TECHNICAL PARAMETERS

ITEM	UNIT	ZBH5072ZYSQLE6	ZBH5072ZYSJXE6	ZBH5082ZYSJXE6
Effective capacity of waste tank	m³	7.2	5.6	7.2
Compression cycle time	s	≤18	≤18	≤18
Loading cycle time	s	≤14	≤14	≤14
Dumping time	s	≤45	≤45	≤45

ITEM	UNIT	ZBH5102ZYSDFE6	ZBH5112ZYSQLE6	ZBH5189ZYSDFE6
Effective capacity of waste tank	m³	8	8	13.5
Compression cycle time	s	≤22	≤22	≤22
Loading cycle time	s	≤14	≤14	≤14
Dumping time	s	≤45	≤45	≤45
