Manual Suction Truck

Send Inquiry

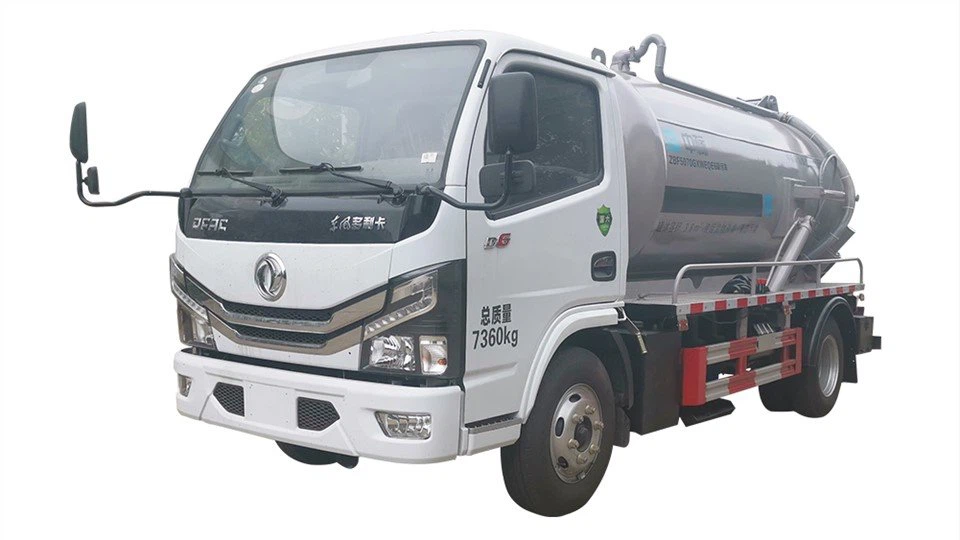

Product Introduction

▼ Roduct specification

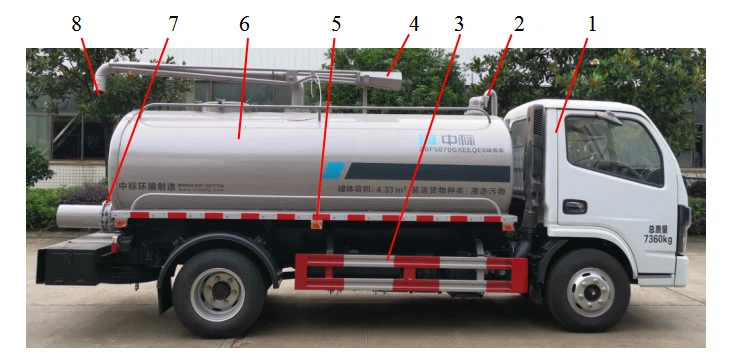

1. Chassis 2.Vacuum system 3.Protective fence 4.Rotating boom 5.Electrical system 6.Sewage irrigation 7.Gas circuit system 8.Sewage suction pipe

The TypZBF5070GXEEQE6 manual suction truck is a special municipal vehicle developed by our company. It is mainly applicable to the suction and cleaning of septic tanks, sedimentation wells and ditches. It is also applicable to the suction, transportation and discharge of wastewater and deposits in oil refining, steel, chemical industry, housing management, sanitation and other industries.

Function introduction:

sewage suction: the water ring vacuum sewage suction pump is driven by the chassis side through the belt pulley to generate vacuum in the sewage tank. Insert the sewage suction pipe below the liquid level, and the sewage is sucked into the sewage tank under the action of atmospheric pressure, transported to the designated place and discharged.
sewage cleaning: the vacuum pump generates a high vacuum in the sewage tank. Insert the sewage suction pipe into the sludge with less water and certain hardness, or align the mouth of the sewage suction pipe with mud, sand, garbage, etc. the high vacuum in the sewage tank generates a high-speed air flow in the sewage suction pipe. These pollutants are brought into the sewage tank under the action of the high-speed air flow to complete the sewage cleaning operation.

▼ Main structure &performance features
Water ring vacuum pump is adopted, with low cost and large suction, which can ensure long-time operation without performance degradation, and the maximum air extraction is 6m ³/ Min, the limit vacuum degree reaches 93%.
The sewage tank is made of 6mm steel plate, with oval section, high liquid level observation window and large-diameter discharge pipe, with a total volume of 5M3 and an announced volume of 4.33 m3.
The rotating boom at the top of the tank can rotate 360 °, which is suitable for multi-directional operation around the vehicle.
The sewage suction pipe adopts a PVC hose with a length of 8m and a diameter of 100mm, which is connected to the sewage suction pipe on the rotating boom, and the front end is equipped with a special sewage suction head to facilitate sewage cleaning and suction operation.
It has efficient and fast dirt absorption function. The dirt absorption depth is greater than 4.5m, and the Grand Slam absorption time is less than 4 minutes (depth 1.5m).
It has high vacuum and strong sewage cleaning function, and can effectively suck solid particles smaller than the sewage suction pipe diameter.

▼ Scope of product use

manual suction truck is suitable for efficient suction and discharge transportation of liquid pollutants such as manure and slag liquid in septic tank, and is not suitable for suction of highly corrosive liquid.

▼ Main technical parameters

Vehicle parameters
shape size(lengthswidthheight) mm	6023×2000×2490
Curb mass Kg	3930
Max total mass kg	7360
Approach angle / departure angle	27.7°/15.8°
Chassis parameters
Typer chassis	EQ1075SJ3CDF
Typer engine	Q23-115E60	Q28-130E60	D20TCIF1
Engine net power/Displacement	85/2300	96/2800	93/1999
Maximum torque / speed (N.m/（r/min）)	320 / 1400-2600	405 / 2000	350 / 1600-2400
Chassis emission standard	National six
Wheelbase mm	3308
Maximum speed km/h	100
Min turning diameter m	14.7
Operating performance
Vacuum pump model	SK-6
Vacuum pump type	Water ring vacuum pump
Vacuum pump speed (r/min)	1450
Maximum flow of vacuum pump （L/min）	6000
Maximum vacuum （%）	93
Effective volume （m3）	4.33
Maximum suction depth (m)	>4.5
Full tank time	< < 4min (depth 1.5m)
Suction pipe diameter （mm）	100
Blowdown pipe diameter （mm）	200
Sewage tank discharge	The pneumatic valve controls the discharge of the blowdown pipe

Product body configuration

Item	Name	Picture	Parameter	Characteristic
1	Vacuum pump		Flow: 6000L / min Full tank pumping time: < 4 min (1.5 m deep)	the water ring pump is sealed and cooled with clean water, with low cost. Long operation time, good effect and low failure rate.
2	Sewage tank		Maximum volume: 5 m3 Announcement volume: 4.33m3	it is made of 6mm steel plate, oval head and cylindrical tank. it is equipped with observation window, anti overflow valve, maintenance manhole, sewage pipe and other devices.
3	Rotating boom and sewage suction pipe		Boom 360 ° rotation Diameter of sewage suction pipe: 100mm Length of sewage suction pipe: 8M	simple boom with counterweight, easy manual operation. PVC dirt suction hose is light, strong and wear-resistant.
4	Blowdown pipe and valve		Blowdown pipe diameter: 200mm	Pneumatic butterfly valve control switch to avoid manual operation.
