Sewage Suction Truck
It’s suitable for the sewage suction and clean-up of rainwater wells, sedimentation wells, and ditches. It’s also suitable for the suction, conveyance, and discharge of wastewater and precipitate in oil refinery, steel making, chemical, real estate management, and environmental sanitation industries. The main supporting parts of the product adopts globally procured parts to guarantee excellent performance and reliable working.
Product Introduction
PERFORMANCE FEATURE
● HIGH OPERATING EFFICIENCY, CLEANLINESS, AND ENVIRONMENTAL-FRIENDLINESS
-The imported Italian vacuum pump features strong suction force and incorporates the strong high-vacuum clean-up function and can effectively suck all particles smaller than the diameter of suction hose. (The domestic vacuum pump is installed on some vehicle models.) The body cleaning system is provided to clean the vehicle body, sewage suction hose, and working site.
-The sewage tank is made of thickened high-strength steel plates and adopts new sealing materials to eliminate dripping and leakage.
● HIGH SAFETY AND INTELLIGENCE AND EASY OPERATIONS
-The opening and closing of ball valve at sewage suction hose opening, the opening and closing of sewage tank rear cover, and the tilting and return of tank body are electronically controlled and hydraulically operated, featuring easy operations.
-The one-touch venting function by venting valve button can quickly unload the suction hose and quickly empty the sewage from the suction hose, featuring handy operations.
● QUALITY GUARANTEE AND HIGH STABILITY AND RELIABILITY
-The imported Italian vacuum pump and vacuum accessories are used to guarantee high stability and reliability. (The domestic vacuum pump is used on some vehicle models.)
-The sewage tank is installed with high level warning and protection device to guarantee the operating safety
TECHNICAL PARAMETERS
| ITEM | UNIT | ZBH5070GXWEQE6 | ZBH5070GXWEQY6 | ZBH5180GXWDFE6 |
|
Wheelbase |
mm |
3308 |
3308 |
5000 |
|
Maximum flow of vacuum pump |
L/min |
9000 |
2700 |
15100 |
|
Effective suction lift (Below ground level) |
m |
>4.5 |
>4.5 |
>4.5 |
|
Sewage tank capacity |
m³ |
3.08 |
3.7 |
9.45 |
|
Sewage suction hose diameter |
mm |
100 |
100 |
125 |
|
Maximum pressure of water pump |
MPa |
1.1 |
1.1 |
1.1 |
|
Maximum flow of water pump |
L/min |
9.83 |
9.83 |
9.83 |
|
Clean water tank capacity |
L |
120 |
120 |
350 |
| TEM | UNIT | ZBH5180GXWLZE6 | ZBH5180GXWEQY6 | ZBH5250GXWDFE6 |
|
Wheelbase |
mm |
5100 |
4500 |
4350+1350 |
|
Maximum flow of vacuum pump |
L/min |
15100 |
6600 |
15100 |
|
Effective suction lift (Below ground level) |
m |
>4.5 |
>4.5 |
>4.5 |
|
Sewage tank capacity |
m³ |
9.45 |
10.0 |
13.5 |
|
Sewage suction hose diameter |
mm |
125 |
125 |
125 |
|
Maximum pressure of water pump |
MPa |
1.1 |
1.1 |
7 |
|
Maximum flow of water pump |
L/min |
9.83 |
9.83 |
50 |
|
Clean water tank capacity |
L |
350 |
350 |
700 |

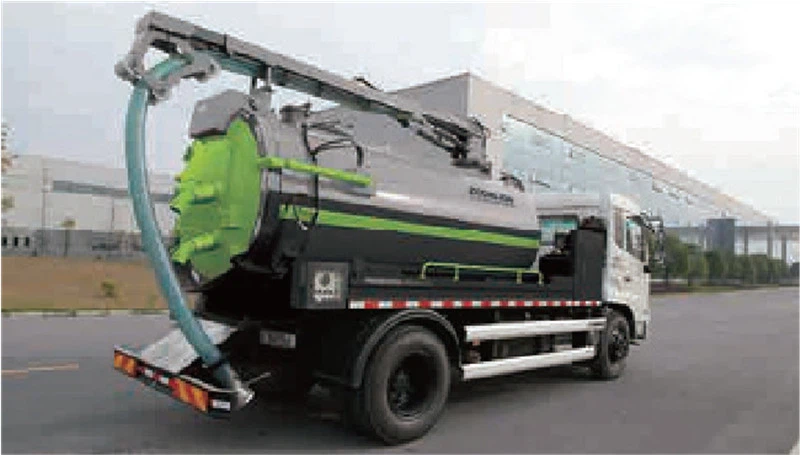

The automatically controlled rotary boom is installed to realize simple and convenient operations.

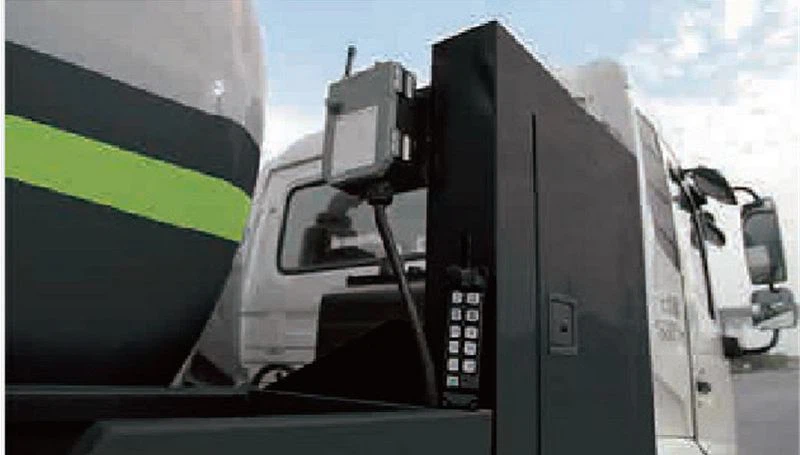

Intelligent electric control with remote control function.
The wire-reinforced PVC hoses guarantee high reliability.
