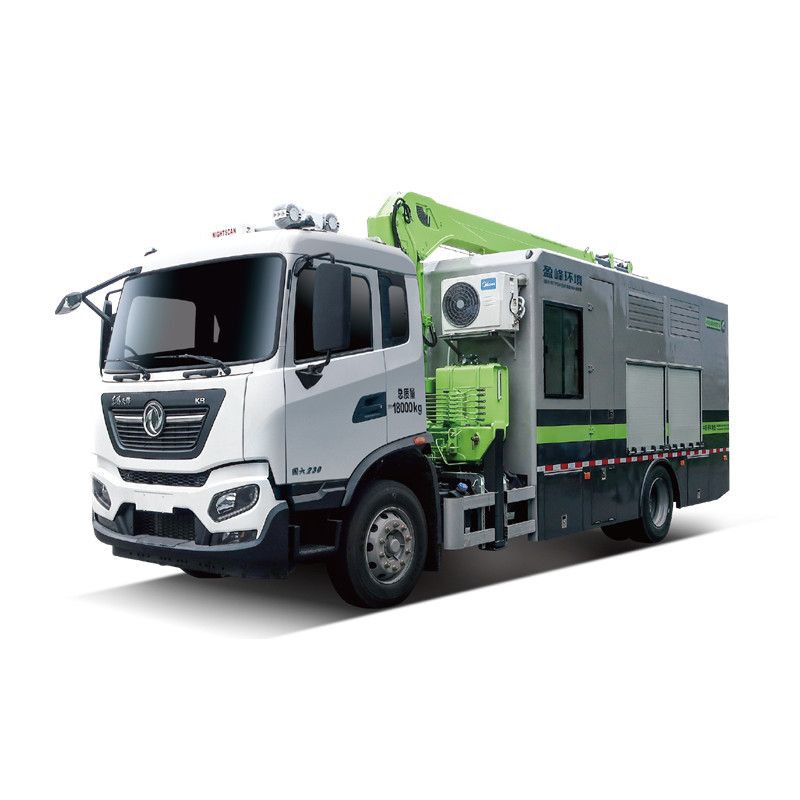

High-Flow Water Draining Rescue Truck
This product is one multifunctional emergency flood control water drainage in event of urban water logging after rainstorm supply truck. It’s suitable for the water drainage for urban subways/bridges/tunnels, and underground garages as well emergency power supply, and flood control and drought relief.
Product Introduction
PERFORMANCE FEATURE
● HIGH EFFICIENCY AND ENERGY-CONSERVATION
-The high-flow portable submersible pump realizes 4000m3/ho
-The single pump working mode or multiple pump working diversified working conditions, featuring high operating
-The emergency water draining rescue function, the mobile transformation function are provided.
-The truck-mounted crane is installed to provide the emergency
-The water pump adopts permanent magnet motor to variable frequency start current and high motor efficiency -The boom and hook motions can be controlled by remote
● ECONOMIC AND PRACTICAL
-The water pump is small in volume, with the overall of same flow and lift.
-The water pump is light in weight (Only 80kg), which is less -The water hose connectors are made of ABS engineering and high economy and practicability.
TECHNICAL PARAMETERS
| TEM |
UNIT |
ZBH5160TPSDFE6 |
|
Chassis brand |
- |
Dongfeng Tianjin |
|
Wheelbase |
mm |
5000 |
|
Model of water draining pump |
- |
12SZQ1000-10-45 |
|
Maximum flow |
m³/h |
4000 |
|
Individual pump flow |
m³/h |
1000 |
|
Lift |
m |
8-10 |
|
Water pump type |
- |
Submersible pump (Portable flood control rescue pump) |
|
Rated power of alternator |
kW |
200 |
|
Extended length of truck-mounted telescoping boom |
m |
13.5 |
|
Slewing speed of boom |
° |
360 |
|
Slewing speed of boom |
m |
15.5 |
|
Maximum lifting capacity |
t |
6.3 |
The boom can be extended to 13.5m to cross over obstacles and drain the water
The water draining flow of individual pump is >1,000mVh, leading the industry.
The liftable illuminating lamps are installed on the top of vehicle.
The LED illuminating lamps are installed on the rear of vehicle.
The upper and lower sleepers with luxury upholstery, the resting and control room with indepen- dent A/C system, and the folding table are provided for 24-hour on duty personnel.
Built-in power generating system and system
The fire-proof, sound insulation, and noise reduction measures are taken for the inside and the AC power socket and battery conversion control switch are installed.
Color display screen within cab
