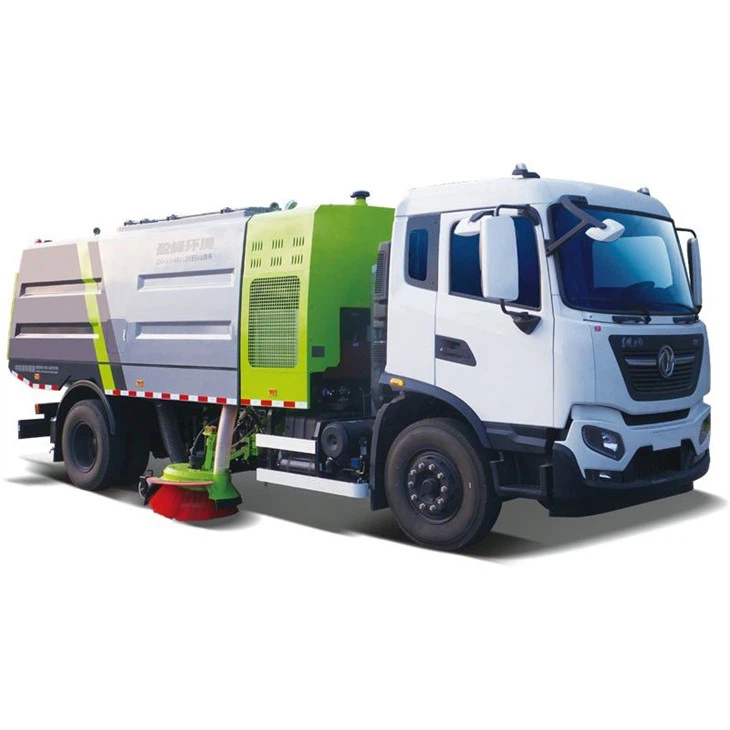

Dry Road Sweeper
It’s suitable for the mechanized sweeping and sanitation operations for the ring roads, urban main roads, airports, ports, and factories and mines.
Product Introduction
PERFORMANCE FEATURE
● HIGH ENVIRONMENTAL-FRIENDLINESS
-Water-free dust-suppression technology: The high-flow high-pressure dedusting mode with multiple filter cartridges guarantees no raised dusts during working of vehicle.
-Fan noise-reduction technology: The fan vanes are optimized and the low-noise fan is designed by simulation analysis. The special spectral characteristic for the aerodynamic noise of the fan is applied and the special fan muffler is installed to reduce the working noise of the vehicle by 5%.
-Power matching technology: The matching between engine speed and working condition is optimized to run the engine constantly within the economic fuel consumption zone and improve the fuel economy.
● HIGH EFFICIENCY
-Super-high-simulated suction nozzle technology: The internal airflow field and the structural design of the suction nozzles are optimized by simulation analysis to improve the suction/collection capability by 10%. The unique jaw plate control structure ensures that the wastes of large volume can be thoroughly swept to improve the overall cleanliness. -Pipeline firmness technology: The hydraulic pipelines adopt the world’s advanced ferrule type high-precision drawn tubes with hard mechanical seals to remarkably reduce the malfunction rate of hydraulic system.
● HIGH INTELLIGENCE
-CAN bus intelligent control technology: The one-button control, the real-time display of vehicle working condition, working parameters, and malfunction information on display screen, and the video monitoring function are realized to understand the working situation at a glance and ease the driver’s operations and maintenances.
-GPS real-time monitoring technology: The information shared between working site and the management center can be realized by information connectivity with management platform to enable the management center to real-time master the working status of the vehicle.
-Sweeping mechanism adaptive technology: The sweeping mechanism can automatically avoid the obstacles and automatically adjust the ground clearance of the sweeping disc to further improve the working cleanliness and effectively prolong the life of sweeping brush by >15%.
TECHNICAL PARAMETERS
| ITEM | UNIT | ZBH5074TSLQLE6 | ZBH5084TSLJXE6 | ZBH5184TSLDFE6 | ZBH5184TSLCAE6 |
|
Wheelbase |
mm |
3815 |
3815 |
5000 |
4500 |
|
Sweeping width |
m |
≥2.8 |
≥2.8 |
≥3.4 |
≥3.4 |
|
Cleanliness rate |
- |
≥90 |
≥90 |
≥92 |
≥92 |
|
Total capacity of waste tank |
m3 |
4.8 |
4.8 |
8 |
8 |
With volume of crushed waste reduced by >3 times than the original volume, it solves the problem of easy waste tank fullness due to suction of complete leaves and fallen branch- es to effectively improve the working efficiency
No dead corner during sweeping of curbs

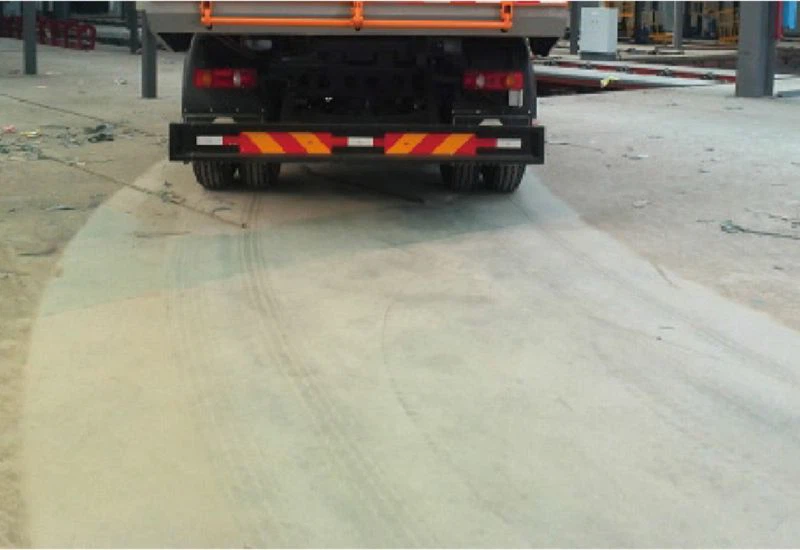

No raised dusts during sweeping of dusts
High suction capacity for sweeping of sands
