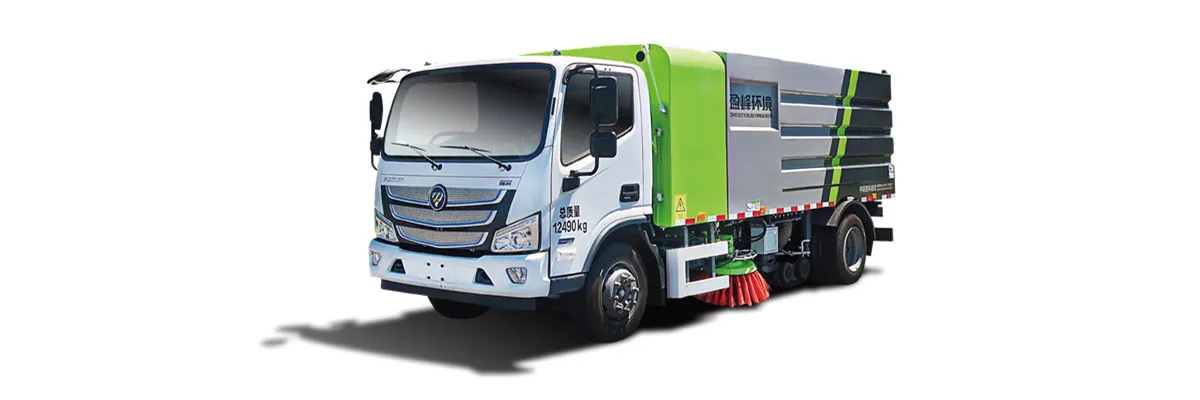

New Energy Cleaning Sweeper Truck
Cleaning sweeper truck is a high-efficiency sanitation vehicle that integrates the road sweeping and high pressure cleaning functions and is applicable for the in-depth sweeping sanitation and common sanitation for urban squares, road surfaces, and road curbs.
Product Introduction
PERFORMANCE FEATURE
-The classic arrangement of“Two middle-mounted sweeping discs + wide middle-mounted suction nozzle + V-shaped spray booms”guarantees high cleaning rate and high operating speed.
-This vehicle incorporates the diversified functions, including road sweeping/cleaning, sweeping, curb scrubbing, and dust-suppression mist spray, for multiple purposes.
-The intelligent voice alarm system can monitor and alarm the working status to guarantee the normal working of machine and prevent the occurrence of accidents.
-The integrated intelligent instruments allow real-time inquiry. The professional malfunction diagnostic module allows the quick diagnosis of malfunctions and problems.
-The core parts, including high pressure water pump, adopt the imported renowned brand products to ensure high reliability of machine.
-The optimized power configuration, the wide high-efficiency working range of motor, and the energy-saving noise-reducing X advanced high-voltage power distribution management system guarantee the high-voltage safety and the system stability of the machine.
TECHNICAL PARAMETERS
|
ITEM |
UNIT | ZBH504OTXSSHBEV | ZBH5100TXSQLBEV | ZBH5120TXSSHBEV | ZBH5120TXSSHBEVB1 |
|
Battery charge status |
kWh |
98.04 |
218.54 |
218.54 |
218.54 |
|
Sweeping width |
m |
2.5 |
3.1 |
3.1 |
3.1 |
|
Operating speed |
km/h |
3~20 |
3~20 |
3~20 |
3~20 |
|
Wheelbase |
mm |
3308 |
3815 |
4700 |
4200 |
|
Maximum operating capacity |
m²/h |
50000 |
64000 |
62000 |
62000 |
|
Cleaning rate |
% |
≥95 |
≥95 |
≥95 |
≥95 |
|
Clean water tank capacity |
m³ |
2 |
4.6 |
5 |
5 |
|
Waste tank capacity |
m³ |
2.1 |
3 |
6.2 |
3.4 |
|
Waste tank dumping angle |
° |
≥45 |
≥45 |
≥45 |
≥45 |
|
ITEM |
UNIT | ZBH5180TXSEQABEVB1 | ZBH518OTXSEQBBEV | ZBH5180TXSETBEV | ZBH518OTXSDFBEVD |
|
Battery charge status |
kWh |
314.14 |
314.14 |
314.14 |
218 |
|
Sweeping width |
m |
≥3.5 |
≥3.5 |
≥3.5 |
≥3.5 |
|
Operating speed |
km/h |
5~20 |
5~20 |
5~20 |
5~20 |
|
Wheelbase |
mm |
5300 |
5300 |
5300 |
5300 |
|
Maximum operating capacity |
m²/h |
70000 |
70000 |
70000 |
70000 |
|
Cleaning rate |
% |
≥95 |
≥95 |
≥95 |
≥95 |
|
Clean water tank capacity |
m³ |
≥8.5 |
≥7.3 |
≥7.3 |
≥7.3 |
|
Waste tank capacity |
m³ |
≥6 |
≥7.0 |
≥7.0 |
≥7.0 |
|
Waste tank dumping angle |
° |
≥48 |
≥48 |
≥48 |
≥48 |
